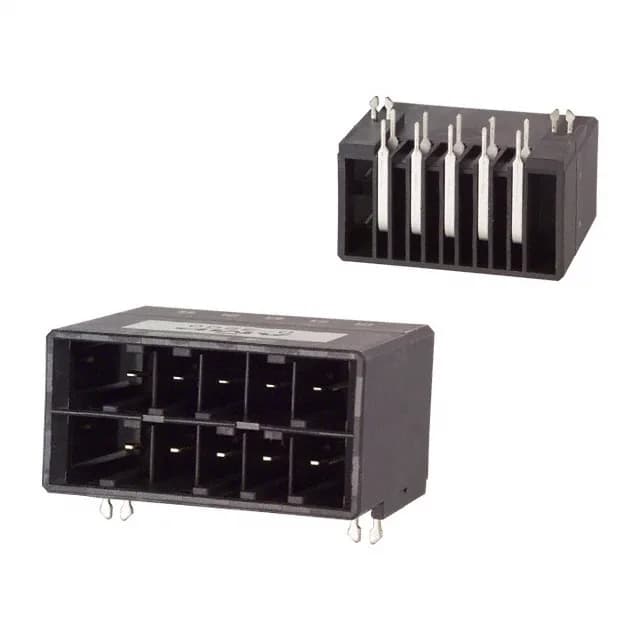

TE Connectivity Dynamic D-3200 header, order code 3-316080-5, 10 positions, dual row, 0.200" (5.08 mm) pitch, 600 V, tin-plated mating contacts, through-hole right-angle, solder termination, board lock.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.668\" (16.97mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 10 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 3-316080-5 is the 10-position member of TE's Dynamic D-3200 shrouded header line, configured for board-to-board or cable duty.
The four-wall shrouded housing protects the tab contacts during handling and mating.
RoHS and REACH compliance documentation is available from TE Connectivity upon request.
