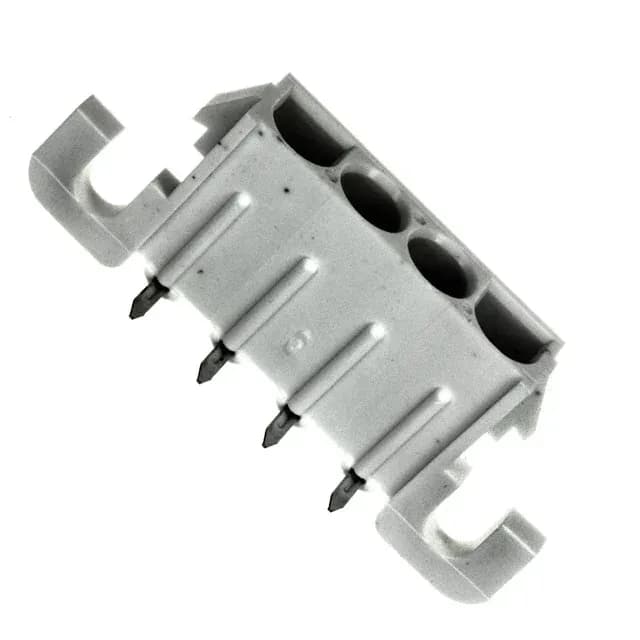

Board-to-wire power header, 12 A per circuit
It carries a 12 A current rating per circuit at 600 VAC, with a 0.250" (6.35 mm) pitch that sets the board footprint and per-contact current ceiling. The gold-plated mating contacts (30 µinch thickness) withstand repeated mating cycles and resist corrosion in humid or industrial environments.
Pitch, current, and plating drive the fit
At 6.35 mm pitch, this header offers generous routing space between pins, making it suitable for higher-voltage or power distribution on the board.
Mounting and locking details
Right-angle through-hole mounting with a solder tail length of 0.160" (4.06 mm) provides a stable board attachment. The mounting flange adds an extra anchor point for mechanical retention.
