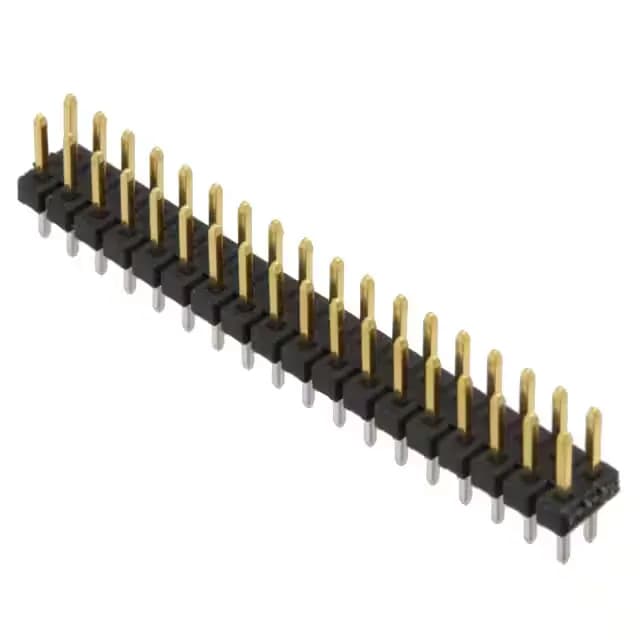

TE Connectivity AMP Connectors AMPMODU header, breakaway, order code 3-5176264-2, 36 positions, dual row, 2.00 mm pitch, 200 VAC, gold-plated mating contacts, through-hole, solder termination.
TE AMPMODU 3-5176264-2 Header, 36-Pos 2.00mm
MPN3-5176264-2
Active
TE Connectivity AMP Connectors AMPMODU header, breakaway, order code 3-5176264-2, 36 positions, dual row, 2.00 mm pitch, 200 VAC, gold-plated mating contacts, through-hole, solder termination.
$2.8972Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 200VAC |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 36 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Product details
Frequently asked questions
What compliance documentation does TE provide for 3-5176264-2?
The housing carries UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors.
