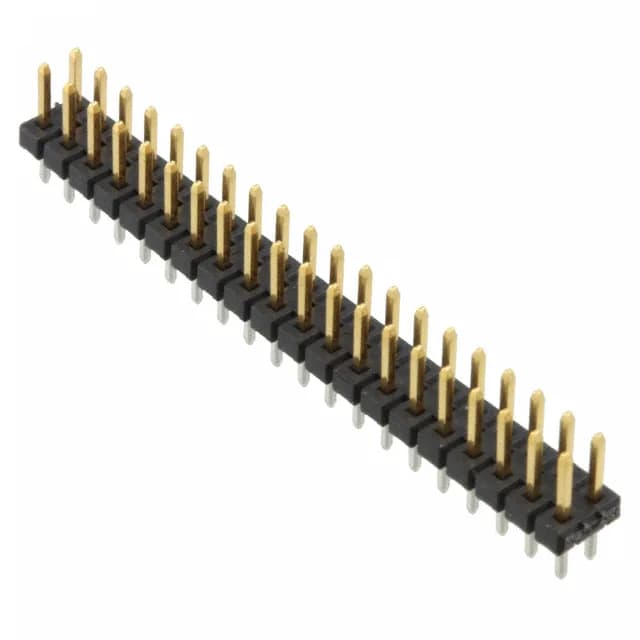

TE Connectivity AMPMODU header, order code 3-5176264-4, 40 positions, dual row, 2.00 mm pitch, 200 VAC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 200VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 40 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
The 3-5176264-4 is the 40-circuit member of the TE AMPMODU breakaway header line, dual-row, 2.00 mm pitch, unshrouded push-pull interface. Gold-plated mating contacts rated 200 VAC, through-hole solder termination, UL94 V-0 thermoplastic housing rated -40°C to 105°C.
Gold mating contacts (8.00 µin) suit moderate mating-cycle duty; the tin post finish matches standard solder processes.
The housing carries UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available through the manufacturer.
