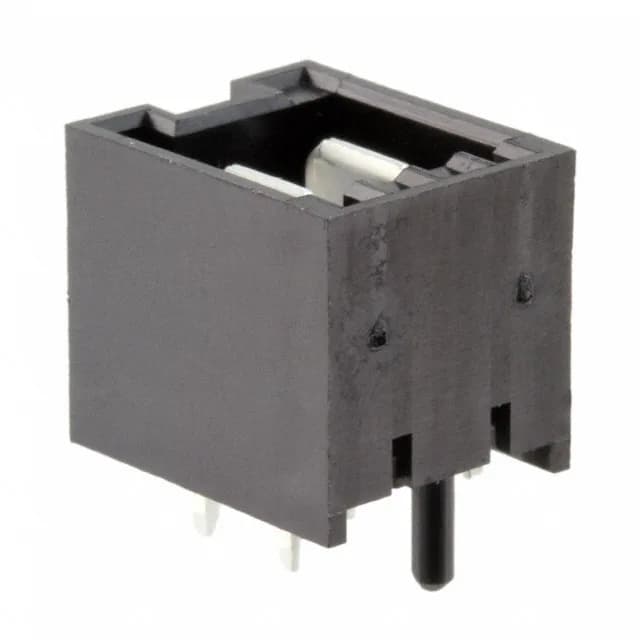

TE Connectivity AMP Connectors header, order code 3-521383-2, 2 positions, single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through hole, solder termination, shrouded - 4 wall, latch holder.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Brass |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 3-521383-2 is a 2-circuit shrouded header from TE Connectivity AMP Connectors, designed for board-to-wire power or signal connections. Rated 250 VAC with tin-plated brass contacts, the single-row 5.00 mm pitch layout suits applications where a compact, keyed interface is needed.
