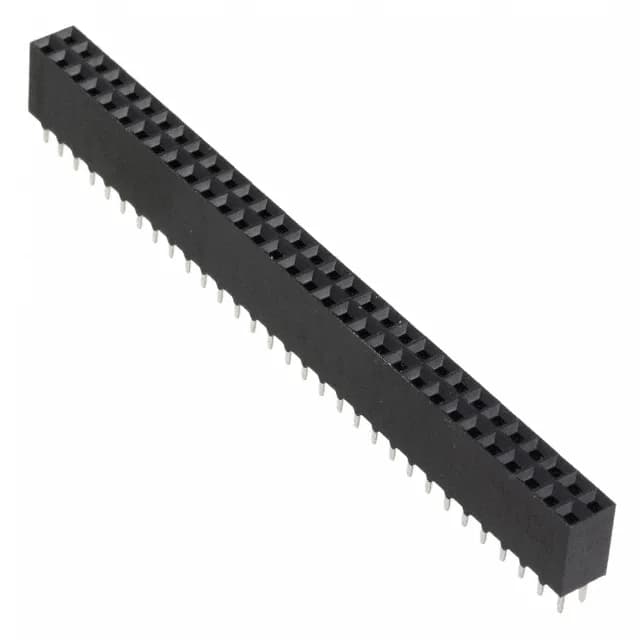

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 3-534206-1, 62 positions, dual row, 0.100" (2.54 mm) pitch, 2 A, gold mating contacts, through-hole, solder termination.
TE 3-534206-1 AMPMODU Mod II 62-Pos Receptacle, 2.54mm
MPN3-534206-1
Active
TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 3-534206-1, 62 positions, dual row, 0.100" (2.54 mm) pitch, 2 A, gold mating contacts, through-hole, solder termination.
$8.8755Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.320\" (8.13mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 62 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 3-534206-1 in this series?
No same-series peer is listed on record. The 62-position count is the only variant in the AMPMODU Mod II receptacle line with this position count. Other position counts in the series use the same 2.54 mm pitch and footprint.
What compliance documentation does TE Connectivity provide for 3-534206-1?
The record lists no RoHS, REACH, UL, or IEC documentation for this part number. Contact TE Connectivity directly for compliance certificates.
