TE Connectivity AMP Connectors MTA-156 series, 3-641121-3, Board to Cable/Wire header, 3 positions, 0.156" (3.96mm) pitch, Through Hole, Right Angle, shrouded, friction lock, Gold mating contacts.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

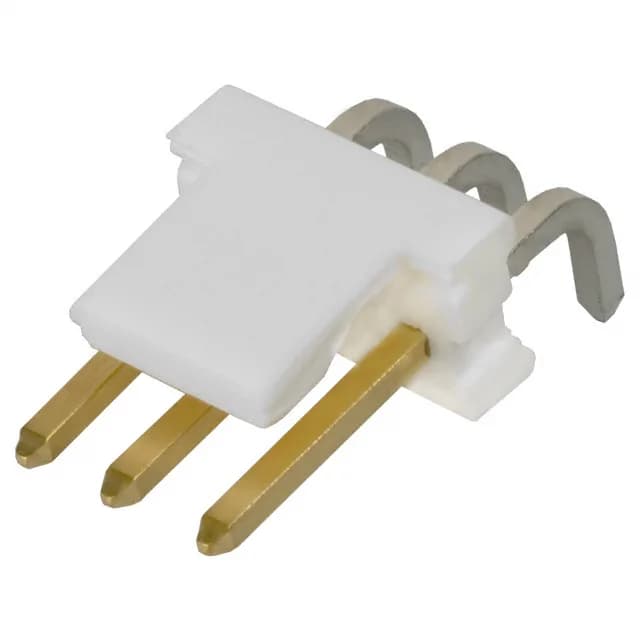

The 3-641121-3: This MTA-156 header seats three male pins in a single row at 0.156" (3.96mm) pitch, with the solder tails bent 90° so the connector body lies flat against the board surface. The shrouded one-wall design guides the mating housing into alignment and the friction lock clicks into the latch window — you should hear it seat before you let go of the cable.
The mating pitch is 0.156" (3.96mm), single row, 3 positions.
