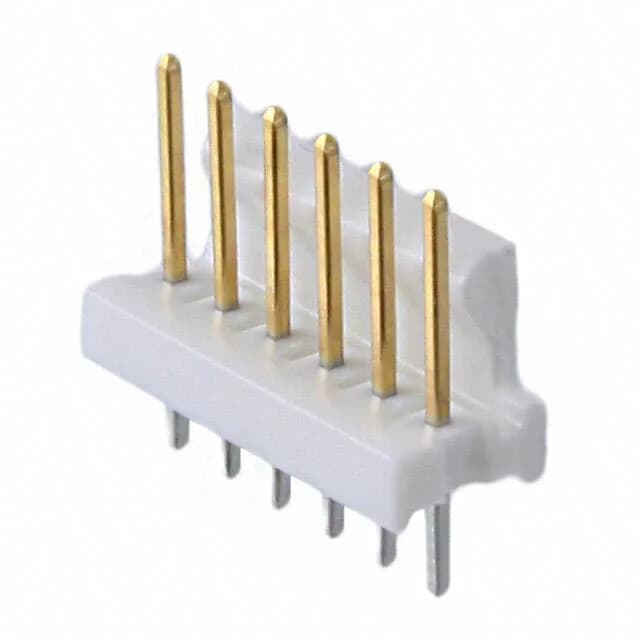

TE Connectivity AMP Connectors MTA-100 series, 3-641126-6, Board to Cable/Wire header, 6 circuits, 0.100" (2.54mm) pitch, single row, through hole, shrouded - 1 wall, friction lock, gold mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 3-641126-6: The friction lock provides retention against vibration-induced disconnect without a secondary latch.
It is RoHS compliant.
This header mates with a standard MTA-100 receptacle housing (crimp or IDC termination). The through-hole solder termination suits wave or hand-solder assembly.
The 3-641126-6 mates with a standard MTA-100 receptacle housing (crimp or IDC termination). The 0.100" pitch and single-row configuration define the mating half.
