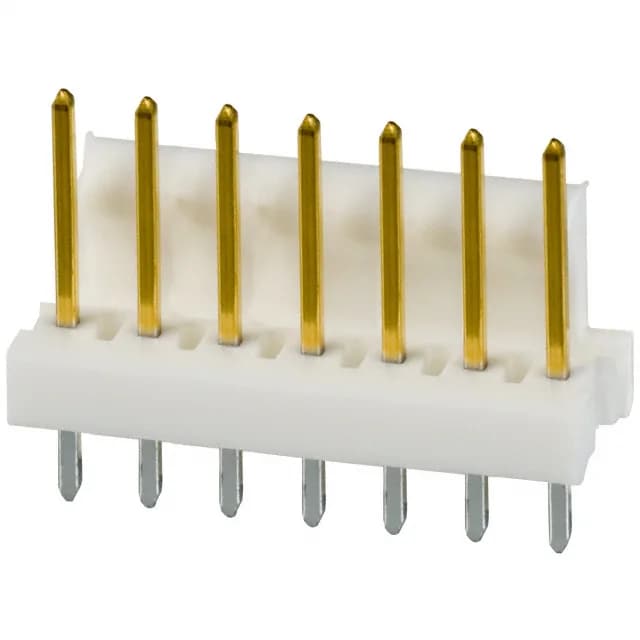

TE Connectivity AMP Connectors MTA-100 header, 3-641126-7, 7 positions, 0.100" (2.54 mm) pitch, single row, shrouded 1 wall, through hole, gold-plated male pins, friction lock, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The male pins are square, gold-plated on the mating surface (15.0 µinch) and tin-plated on the solder tails (150.0 µinch). The single-wall shrouding guides the receptacle during mating and protects the pins from bending.
This header mates with MTA-100 receptacle housings that accept 0.100" (2.54 mm) centerline crimp contacts. The 7-position loaded-all configuration means every pin position is active — no dummy positions.
This header mates with MTA-100 receptacle housings that accept 0.100" (2.54 mm) centerline crimp contacts. The friction lock on the header engages with the corresponding latch on the receptacle.
