TE Connectivity AMP Connectors MTA-100 series, Header, Male Pin, 8 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder Termination, Shrouded - 1 Wall, Friction Lock, Gold Mating Finish
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

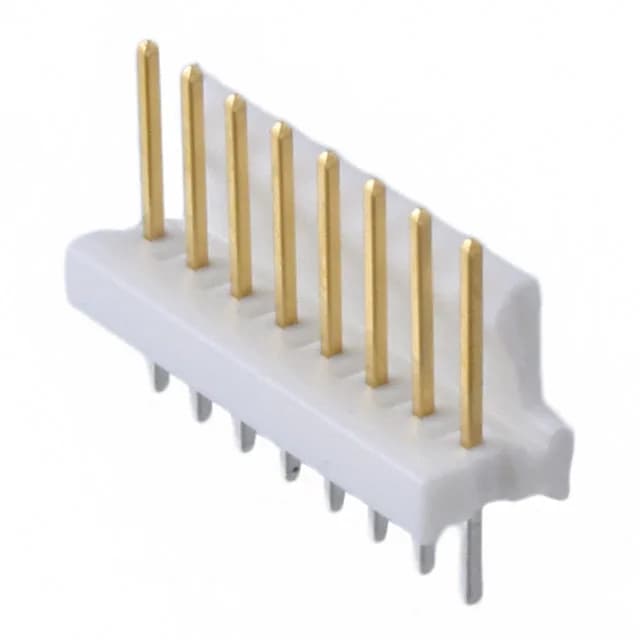

The 3-641126-8: This is an 8-position, single-row header from the MTA-100 series, on 0.100" (2.54mm) pitch — a standard spacing for wire-to-board interconnects in control panels, appliances, and general-purpose electronics. The shrouded 1-wall design and friction lock keep the mating receptacle seated under vibration, which matters more than the raw pin count for field reliability.
This is a single-row, 8-position header. Pin 1 is typically marked by a triangle or chamfer on the housing. The friction lock is on the same side as the shroud wall — orient the mating receptacle so the lock ramp engages that wall.
