TE Connectivity AMP Connectors 3-641127-4 — Pin Headers

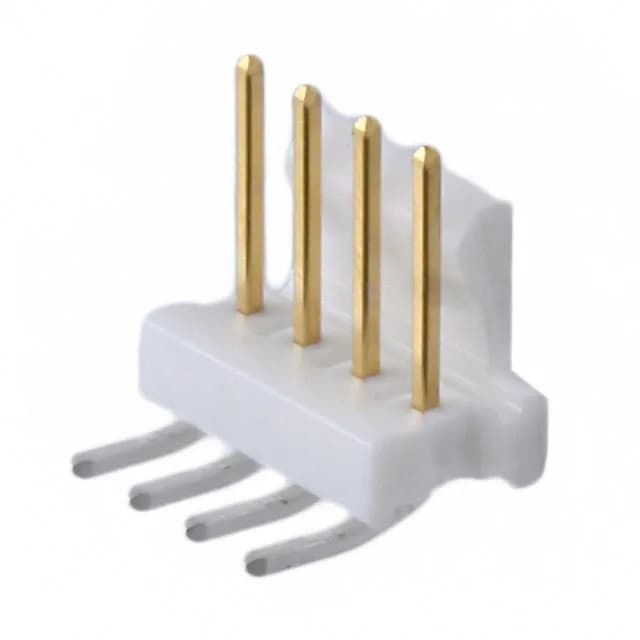

3-641127-4 TE Connectivity MTA-100 Header 4 Pos 2.54mm

MPN3-641127-4
Active

TE Connectivity AMP Connectors MTA-100 series, 3-641127-4, Board to Cable/Wire, Header, Male Pin, 4 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder, Friction Lock, Gold Mating Finish, UL94 V-0

$1.7300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-641127-4 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.225\" (5.72mm)
Insulation materialThermoplastic

All specifications

3-641127-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Contact finish - matingGold
Contact length - mating0.295\" (7.49mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Right-angle header for board-edge harness routing

Gold finish on the mating contact (15 µinch over nickel) supports repeated mate/unmate cycles without the wear-through that tin contacts show. The post tails are tin-plated (150 µinch) for solderability.

This header mates with MTA-100 receptacle housings (crimp or IDC termination). Through-hole solder termination: the post length is 0.140" (3.56mm), suitable for standard 1.6mm PCBs. The square pin geometry (0.025" square typical for MTA-100) provides good solder joint strength.

Frequently asked questions

What is the pitch of 3-641127-4?

The pitch is 0.100" (2.54mm), the standard MTA-100 spacing. This sets the PCB footprint and the per-contact current ceiling.

Is 3-641127-4 shrouded?

It is shrouded with 1 wall — a partial shroud that protects the pins on one side. It is not a fully enclosed header.

Does 3-641127-4 have a friction lock?

Yes, the fastening type is friction lock. It mates with the corresponding latch on the MTA-100 receptacle housing.
