TE Connectivity AMP Connectors 3-641208-4 — Pin Headers

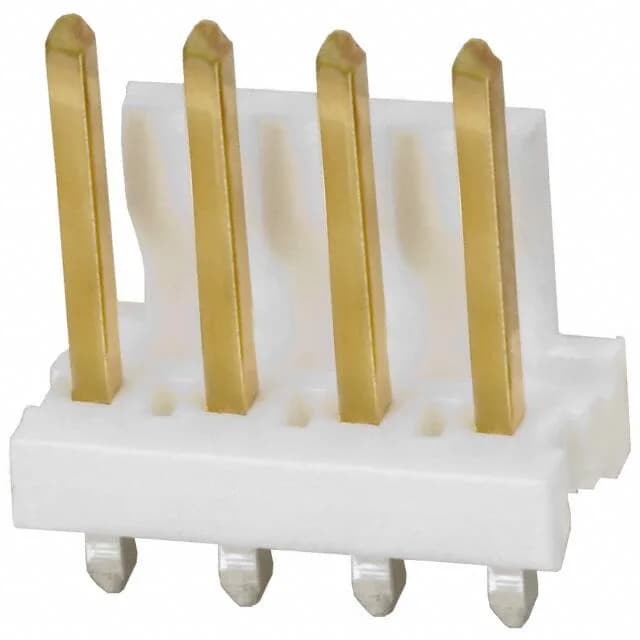

3-641208-4 TE Connectivity MTA-156 Header 4 Position 3.96mm

MPN3-641208-4
Active

TE Connectivity AMP Connectors MTA-156 header, vertical through-hole, 4 circuits, 3.96 mm pitch, shrouded-1-wall, friction lock, gold-over-nickel mating finish, tin post, UL94 V-0, -55°C to 105°C, ROHS3 compliant.

$2.0700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-641208-4 key specifications
ParameterValue
SeriesMTA-156
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.425\" (10.80mm)
Insulation materialThermoplastic, Glass Filled

All specifications

3-641208-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions4
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.650\" (16.51mm)
Contact finish - matingGold
Contact length - mating0.400\" (10.16mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Fit and Wire-to-Board Role

The 3-641208-4: The single-wall shrouding protects the mating pins from one side, leaving the other three sides open. This is a space-saving design for applications where the mating housing is inserted from a known direction, typical in general-purpose and industrial equipment.

The base product number is 641208, which is useful for searching the full MTA-156 family.

Comparison with Peer Alternatives

That part uses tin mating finish (vs gold on the 3-641208-4) and includes a board lock for SMT retention. The pitch difference alone means they are not footprint-compatible — the 3-641208-4's 3.96 mm pitch is wider and suits larger wire gauges.

Frequently asked questions

What is the pitch of TE 3-641208-4?

The mating pitch is 0.156" (3.96 mm), which is the standard for the MTA-156 series.

Is 3-641208-4 shrouded?

Yes, it is shrouded on one wall (shrouded-1-wall). This protects the pins from one side during mating, leaving the other three sides open for a compact footprint.
