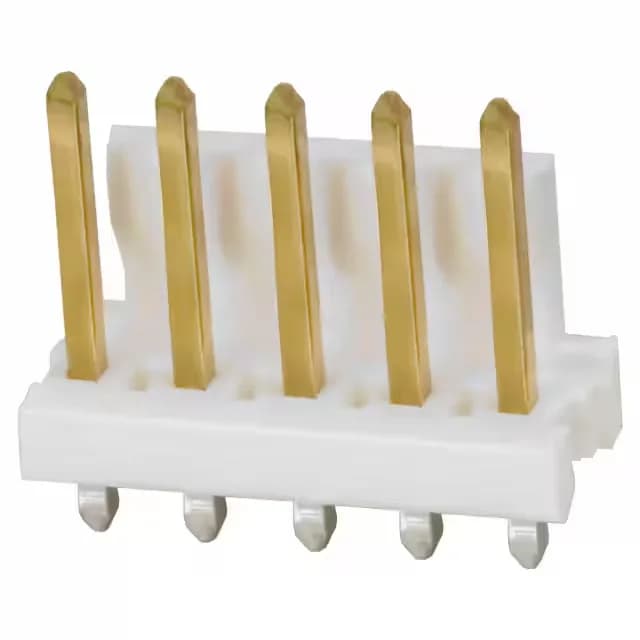

TE Connectivity MTA-156 header, 3-641208-5, 5 position, 0.156" (3.96mm) pitch, vertical through-hole, shrouded 1-wall, gold-plated male pins, friction lock, UL94 V-0 natural thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-641208-5: Mates with the MTA-156 receptacle housing (crimp socket) — the friction lock engages the corresponding ramp on the receptacle. The 0.400" (10.16mm) mating pin length provides full contact wipe before lock-up. The square pin (0.045" typical) fits a 0.040" plated through-hole for a reliable solder joint.
ROHS3 compliant.
The mating pitch is 0.156" (3.96mm). This is the center-to-center spacing between adjacent pins.
Yes, it is ROHS3 compliant.
It mates with the MTA-156 receptacle housing (crimp socket) that has a matching friction lock feature. The receptacle accepts the same 0.156" pitch and 5-position layout.
