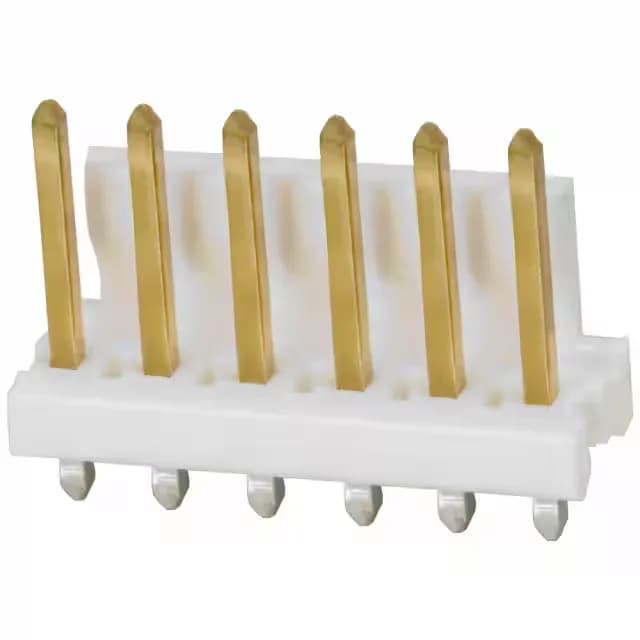

TE Connectivity AMP Connectors MTA-156, Header, 6 Positions, 0.156" (3.96mm) Pitch, Through Hole, Solder, Gold Mating Contact, Friction Lock, UL94 V-0, -55°C~105°C
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-641208-6: A friction lock secures the header to the receptacle, providing vibration resistance in industrial and general-purpose equipment. The UL94 V-0 thermoplastic housing ensures flame retardancy inside enclosures.
The square male pins accept MTA-156 crimp receptacles. The 0.400" (10.16mm) mating pin length ensures full engagement with the receptacle contacts. The friction lock engages with a tactile click, confirming a seated connection.
Yes. The 0.156" pitch and friction lock are designed for MTA-156 receptacle housings. Confirm the circuit count matches the receptacle.
Sourced to order against BOM quantities. Availability and current pricing confirmed at quote time.
