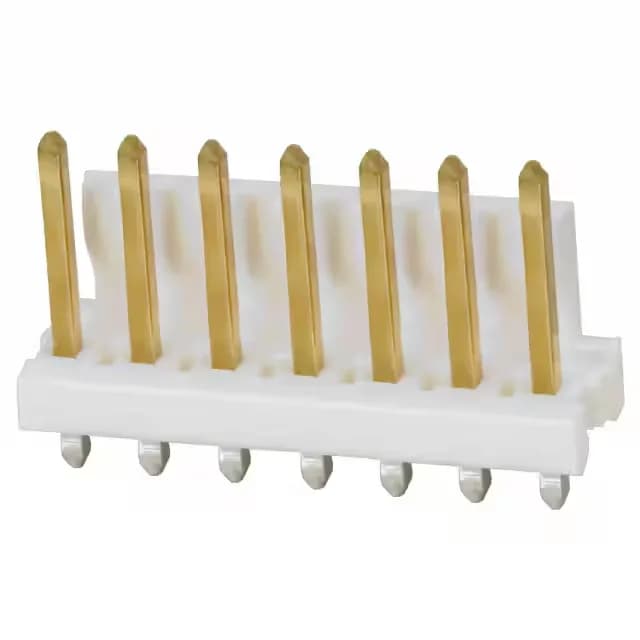

TE Connectivity AMP Connectors, MTA-156 series, Board to Cable/Wire header, 7 circuits, 3.96mm pitch, vertical through-hole, shrouded 1-wall, friction lock, gold-plated male pins, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The gold-plated contacts (30µin) support repeated mating cycles—useful in equipment that sees periodic servicing or reconfiguration.
Overall contact length is 0.650" (16.51mm), with the mating pin extending 0.400" (10.16mm) above the insulator. Insulation height is 0.425" (10.80mm)—check the z-height budget if the header sits near a cover or another board.
Yes—the 3.96mm pitch and single-row layout match the MTA-156 receptacle housings. The friction lock on this header engages with the corresponding latch on the female housing to maintain the mated connection.
