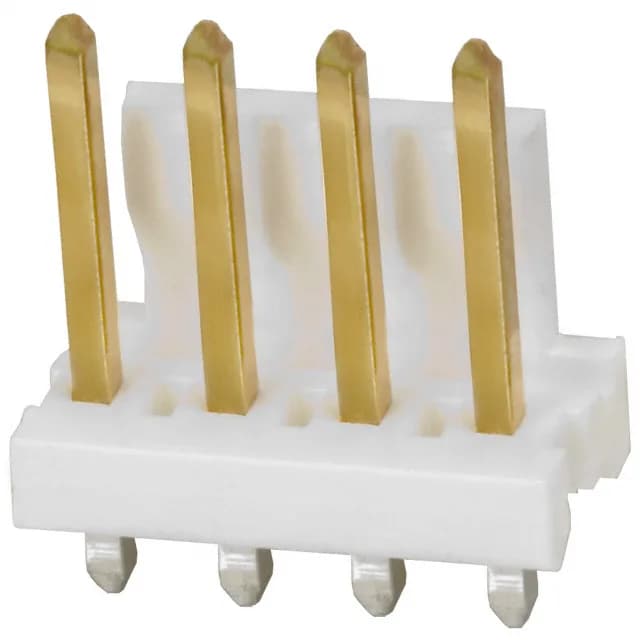

TE Connectivity AMP Connectors MTA-156 Series, Header, 4 Positions, 0.156" (3.96mm) Pitch, Through Hole, Solder Termination, Shrouded - 1 Wall, Friction Lock, Gold Mating Finish 30.0µin, Tin Post, UL94 V-0, -55°C ~ 105°C
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0.156" (3.96mm) pitch matches the industry-standard MTA-156 receptacle family, making it a direct mate for common wire-to-board connectors. The shrouded one-wall design and friction lock provide positive retention against cable pull and vibration, a step up from an unshrouded header in environments where the mating connector might shift.
Available in Bulk packaging.
We source this active TE MTA-156 header per RFQ. Submit a request with your target quantity and we'll confirm availability and pricing from our multi-source supply chain.
It is a 4-position header on 0.156" (3.96mm) pitch, single row, all positions loaded.
Yes, it is ROHS3 Compliant.
