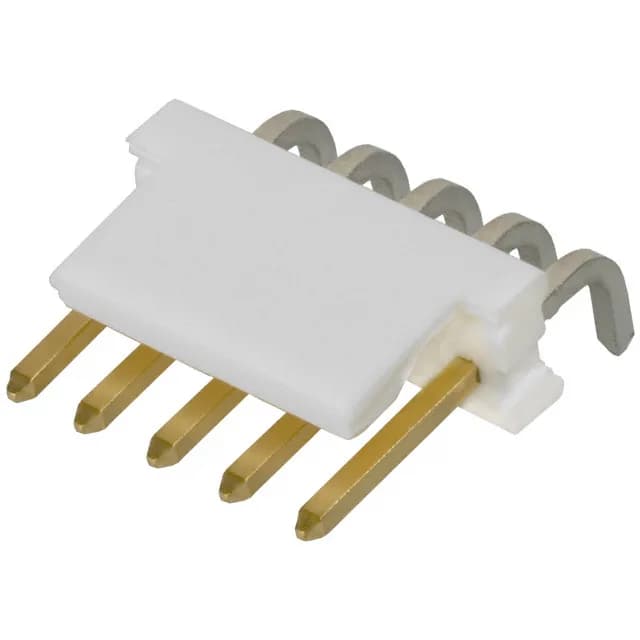

TE Connectivity AMP Connectors MTA-156 header, 3-641210-5, 5 positions, 0.156" (3.96mm) pitch, right-angle through-hole, shrouded 1 wall, friction lock, gold mating contacts, 600VAC, UL94 V-0, -55°C ~ 105°C, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-641210-5 is a 5-position, single-row header from TE's MTA-156 series, on a 0.156" (3.96mm) pitch — a spacing that suits power distribution and industrial wiring more than fine-pitch signal routing.
The 600VAC voltage rating is high for a 3.96mm-pitch header, reflecting the MTA-156 series' design for power-level circuits rather than low-voltage signal lines.
The 3-641210-5 mates with the matching MTA-156 receptacle housing and crimp terminals, forming a board-to-cable/wire connection with a friction lock.
Yes, the 3-641210-5 is ROHS3 compliant.
