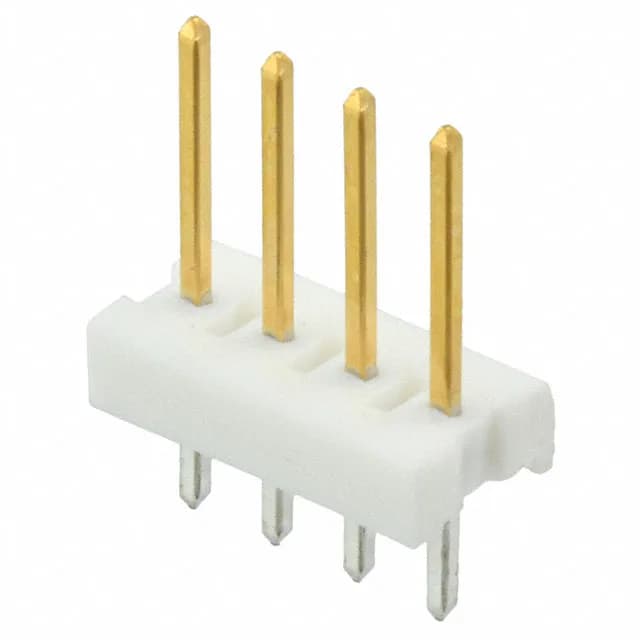

TE Connectivity AMP Connectors MTA-100 series, 3-641211-4: unshrouded single-row header, 4 positions, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, UL94 V-0 natural thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-641211-4: The unshrouded male pins mate with standard MTA-100 crimp receptacles or IDC connectors — the same pitch family used across TE's MTA-100 wire-to-board system.
Tin on the solder tail keeps the board-side cost down.
For a given application, the per-contact current ceiling follows the derating curve of the chosen MTA-100 crimp contact and wire size.
The 3-641211-4 is sourced to order through independent distribution.
The pitch is 0.100" (2.54 mm), standard for the MTA-100 series.
Yes, it is RoHS3 compliant.
Within the MTA-100 series, the 4-position unshrouded header is the standard offering. No direct pin-compatible substitute from another series is listed on this record — confirm the mating half and board footprint before substituting.
