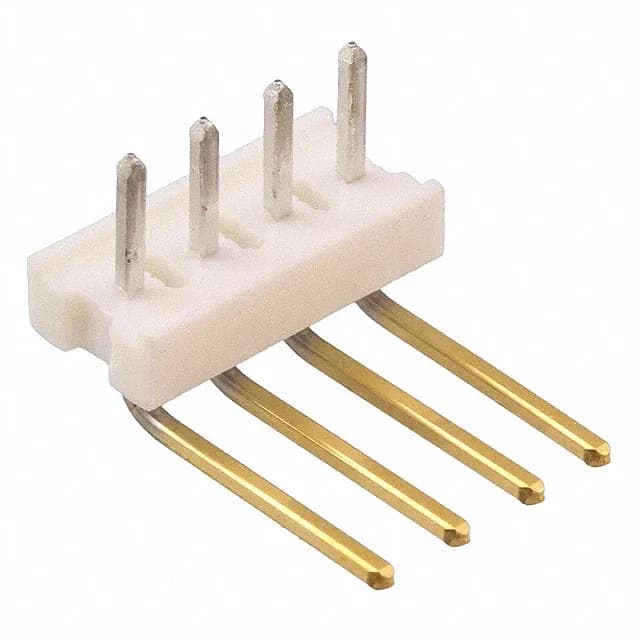

TE Connectivity AMP Connectors MTA-100, Board to Cable/Wire, Header, Male Pin, 4 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold Mating Contact, Unshrouded
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-641212-4: This is a single-row, 4-circuit header from the MTA-100 series, designed to connect a board to a wire harness.
The insulation height is 0.100" (2.54mm), and the mating pin length is 0.295" (7.49mm) — enough to engage the receptacle's contact beam fully.
The base product number is 641212, so any variant starting with that prefix shares the same tooling and footprint.
Unshrouded — the pins are exposed with no plastic shroud. The mating receptacle must be aligned manually; there's no keying beyond the pin pattern.
Any 4-position, 0.100" pitch, unshrouded header from the MTA-100 series with the same through-hole right-angle orientation and gold-plated mating pins will be a direct footprint match. The base product number 641212 covers multiple plating and pin-length options — confirm the contact finish and post length against your application.
