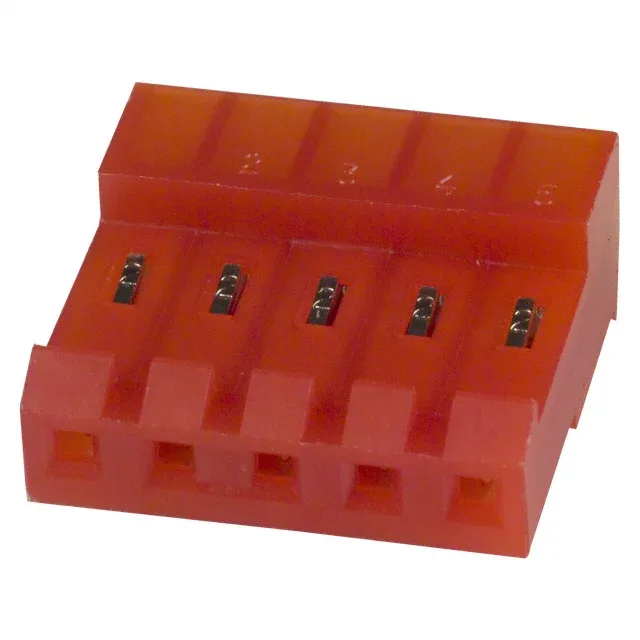

3-643193-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-156 3-643193-5, 5-Pos IDC Receptacle, 0.156" Pitch

MPN3-643193-5
Obsolete

TE Connectivity MTA-156 IDC receptacle, 3-643193-5, 5 positions, 1 row, 0.156" (3.96mm) pitch, tin contacts, 22 AWG, free hanging, locking ramp, closed end, bulk.

$0.7000Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-643193-5 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions5
Contact finish thickness80.0µin (2.03µm)

Product details

5-Position IDC Receptacle, 0.156" Pitch — MTA-156 Series

It terminates discrete or ribbon cable via insulation displacement, accepting 22 AWG wire. The 0.156" (3.96mm) pitch matches the standard MTA-156 header footprint.

Obsolete — Sourcing via Surplus Channel

The 3-643193-5 is classified as Obsolete by TE Connectivity. For new designs, consider the current-production MTA-156 receptacles in the same pitch and wire gauge range, verifying position count and keying compatibility with the intended mating header.

Frequently asked questions

What is a replacement for 3-643193-5?

For new designs, select a current-production MTA-156 5-position IDC receptacle with the same 0.156" (3.96mm) pitch and 22 AWG wire range, verifying the locking ramp and closed-end feature match your harness requirements.

What is the pitch of 3-643193-5?

The pitch is 0.156" (3.96mm), standard for the MTA-156 series.
