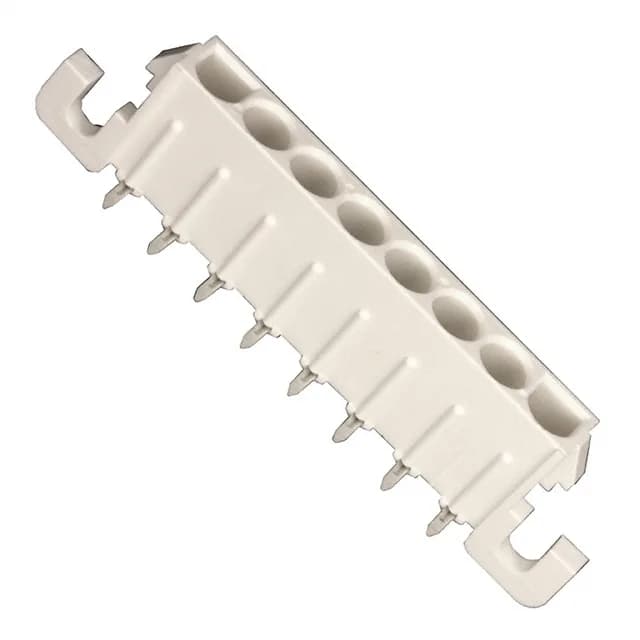

TE Connectivity AMP Universal MATE-N-LOK header, order code 3-643236-0, 8 positions, single row, 0.250" (6.35mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination, locking ramp, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.250\" (6.35mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.160\" (4.06mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-643236-0 is the 8-circuit member of TE Connectivity's Universal MATE-N-LOK header line, a board-to-cable/wire interface with a 0.250" (6.35mm) pitch.
Single-row layout with all 8 positions loaded keeps the board footprint narrow, while the 0.250" (6.35mm) pitch leaves room for routing between pads.
The mating pitch is 0.250" (6.35mm).
Yes, the mounting type is through-hole, right-angle.
