TE Connectivity AMP Connectors 3-644457-6 — Pin Headers

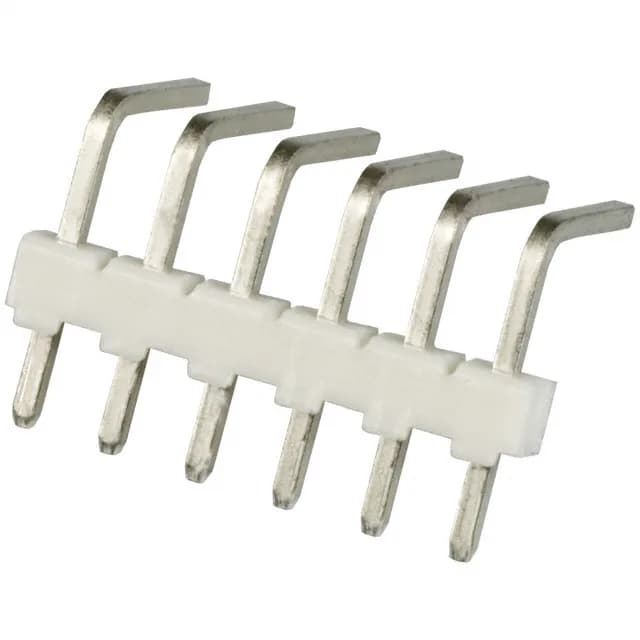

3-644457-6 TE Connectivity MTA-100 6-Pin Right-Angle Header

MPN3-644457-6
Active

TE Connectivity AMP Connectors MTA-100 series, 3-644457-6: 6-position, single-row, unshrouded header, 0.100" (2.54 mm) pitch, right-angle through-hole, tin-plated male pins, UL94 V-0 thermoplastic housing.

$0.4900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-644457-6 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

3-644457-6 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingTin
Contact length - mating0.260\" (6.60mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

Board-edge wiring without the shroud

The unshrouded design means there's no polarisation key — the mating connector must align manually, which works fine in accessible, low-vibration harnesses but adds risk in blind-mate or high-shock environments.

Tin-plated contacts and UL94 V-0 housing

This is a standard tin finish — adequate for general-purpose use but not rated for high-mating-cycle or corrosive environments. The voltage rating is 250 VAC, which is typical for signal-level and low-power circuits in this pitch class.

Frequently asked questions

What is the pin pitch of 3-644457-6?

The mating pitch is 0.100" (2.54 mm), which is the standard MTA-100 spacing. This sets the board footprint and the per-contact current ceiling.

Is 3-644457-6 a right-angle or straight header?

It is a right-angle through-hole header. The pins exit perpendicular to the PCB, making it suitable for board-edge wiring where vertical clearance is limited.

What is the mating connector for 3-644457-6?

As an unshrouded header, it mates with any MTA-100 series receptacle housing that accepts 0.100" pitch crimp terminals. The mating half is not included — confirm the housing part number separately for your wire gauge and circuit count.
