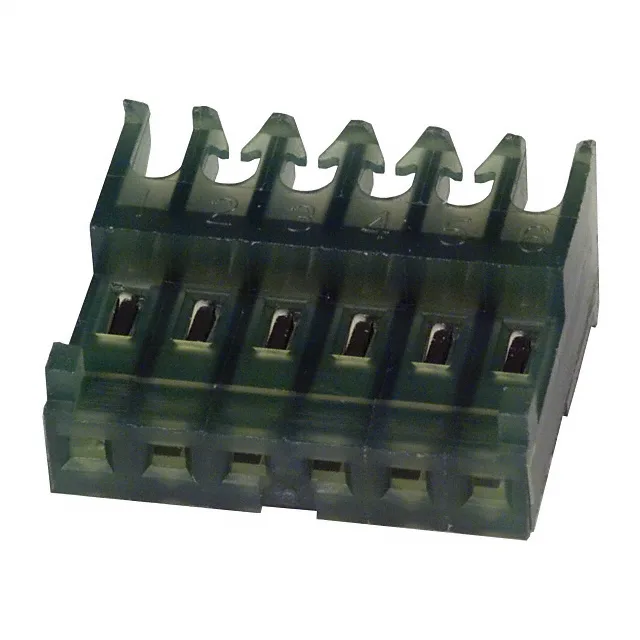

TE Connectivity MTA-100 series, 3-644565-6, 6-position single-row receptacle, 0.100" (2.54 mm) pitch, IDC termination, tin-plated female socket contacts, free-hanging right-angle, locking ramp, green housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 28 AWG |
| Cable termination | IDC |
| Color | Green |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Feed Through |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 6 |
| Contact finish thickness | 80.0µin (2.03µm) |
If you are qualifying a new build, review the current MTA-100 catalog for an in-production position-and-pitch match.
The 28 AWG wire gauge is fixed; the slot geometry does not accept a range. The feed-through feature allows daisy-chaining multiple receptacles on the same cable without cutting the wire.
The 3-644565-6 is obsolete from TE Connectivity, but it is available through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.
