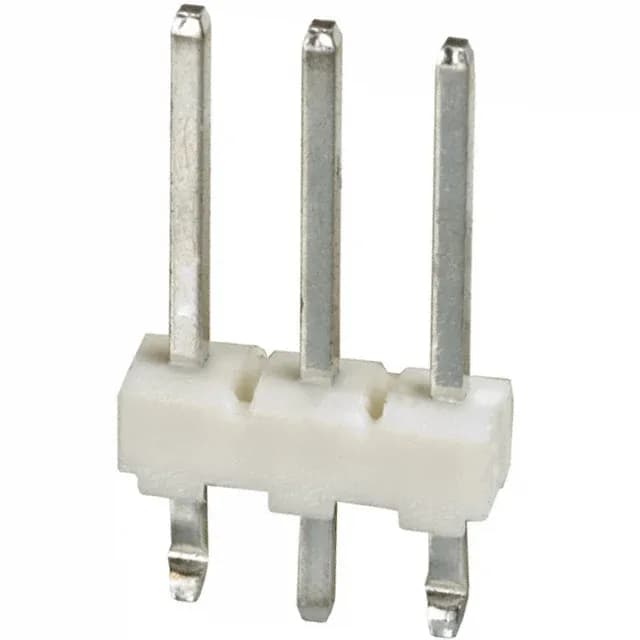

TE Connectivity AMP Connectors MTA-100 series, 3-644695-3, unshrouded vertical header, 3 circuits, 0.100" (2.54mm) pitch, through-hole kinked-pin solder termination, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.505\" (12.83mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The part is ROHS3 Compliant per TE's compliance documentation.
This unshrouded header mates with MTA-100 series IDC or crimp receptacles (such as the 3-640441-3 or 3-641215-3 families) that accept 22-26 AWG wire. Termination is through-hole solder — the kinked pin (0.110" post length) provides retention in the PCB hole during assembly.
The natural color insulation is standard for MTA-100 headers.
No stock-holding claim or price figure is published here.
Yes, the part is ROHS3 Compliant per TE Connectivity's compliance documentation.
For a given wire size, refer to the MTA-100 application note for the derated current at your operating temperature.
Confirm the receptacle's position count and polarization match your application.
