3-644695-9 TE Connectivity MTA-100 Header, 9-Pos

MPN3-644695-9
Active

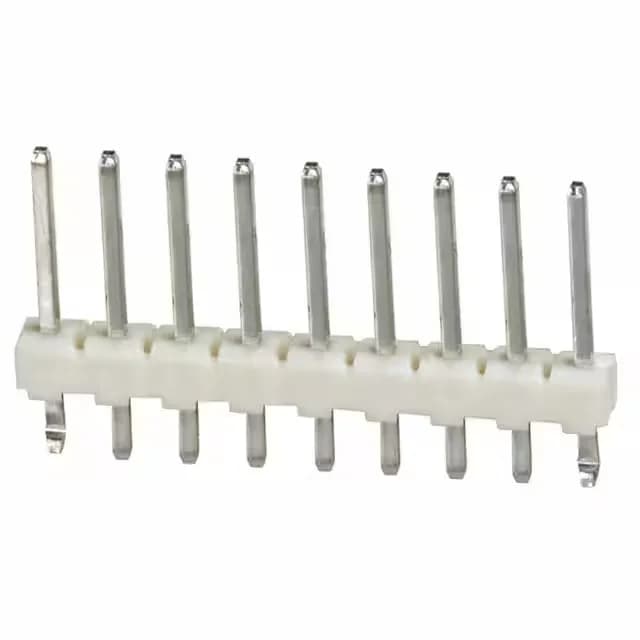

TE Connectivity AMP Connectors MTA-100 header, 3-644695-9, 9-position single-row unshrouded male pin, 0.100" (2.54mm) pitch, through-hole kinked pin solder termination, tin-plated mating and post finish, UL94 V-0 thermoplastic housing, natural insulation color.

$0.5827Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-644695-9 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

3-644695-9 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingUnshrouded
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions9
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.505\" (12.83mm)
Contact finish - matingTin
Contact length - mating0.295\" (7.49mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

The kinked pin solder tail (0.110" post length, 0.505" overall) provides retention during wave-solder and through-hole assembly — the kink acts as a standoff, holding the header flush against the board during reflow.

Tin Plating at 150 µinch — Field-Service Durability

That thickness — well above the 40-80 µinch flash tin found on economy headers — gives the contact good fretting resistance for moderate mating cycles.

No official pin-compatible successor or cross-reference exists from TE — this is the current production part number for the 9-position unshrouded MTA-100 header.

Frequently asked questions

How can I order 3-644695-9 and get a price?

The 3-644695-9 is sourced to order against your BOM quantity.

Is 3-644695-9 compatible with standard MTA-100 receptacles?

Yes. The 0.100" pitch and unshrouded male pin layout are designed to mate with TE MTA-100 IDC and crimp receptacles. Confirm the receptacle's circuit count matches the 9-position header and that the contact plating (tin-to-tin) is compatible for your cycle count.

What is the current rating for 3-644695-9?

The current rating varies by the attached wire gauge — the header itself does not have a fixed ampacity. Consult the wire derating curve for your specific gauge.
