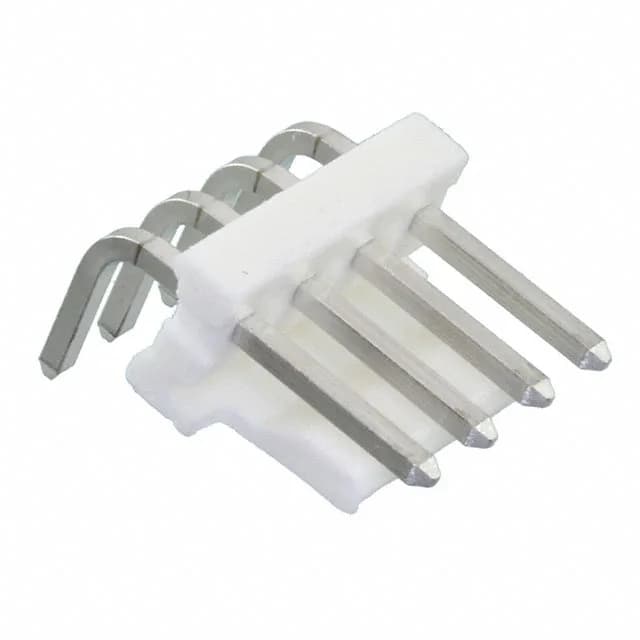

TE Connectivity AMP Connectors MTA-156 header, 3-644755-4, 4 positions, 0.156" (3.96 mm) pitch, right-angle through-hole, shrouded 1 wall, friction lock, tin-plated male pins, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.400\" (10.16mm) |
The contact base is copper alloy.
This header mates with MTA-156 receptacle housings and the corresponding crimp terminals. The 4-position, single-row layout is common for low-circuit-count power and signal interconnects in industrial control, general-purpose equipment, and appliance wiring.
The 3-644755-4 mates with MTA-156 receptacle housings that have a friction lock feature. The receptacle accepts the matching crimp terminals (tin or gold, depending on cycle-life requirements). Confirm the receptacle part number includes the lock ramp for a positive mate.
Yes, the 3-644755-4 is RoHS compliant, standard for the MTA-156 series.
