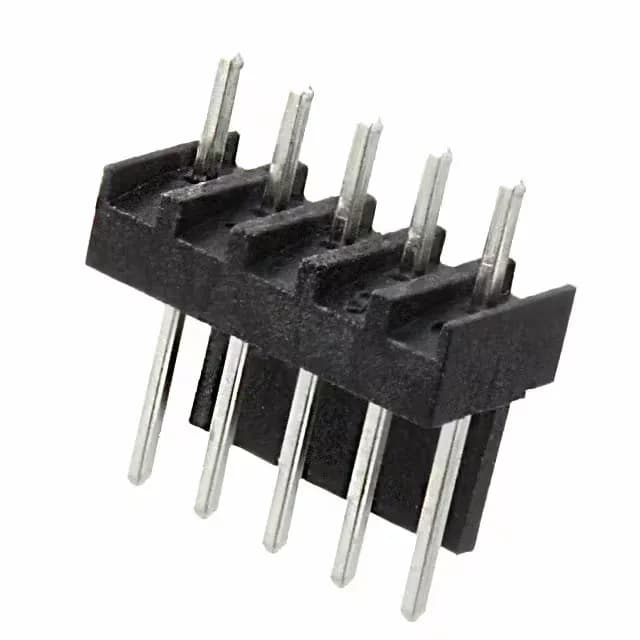

TE Connectivity AMP Connectors MTA-100 header, order code 3-647047-5, 5 positions, single row, 0.100" (2.54mm) pitch, 250VAC, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.290\" (7.37mm) |
The 3-647047-5 is the 5-circuit member of TE's MTA-100 header line, a single-row shrouded board-to-wire header with 0.100" (2.54mm) pitch. Rated 250VAC with tin-plated mating contacts, through-hole mounting, and solder termination.
RoHS and REACH documentation is available from TE Connectivity on request.
