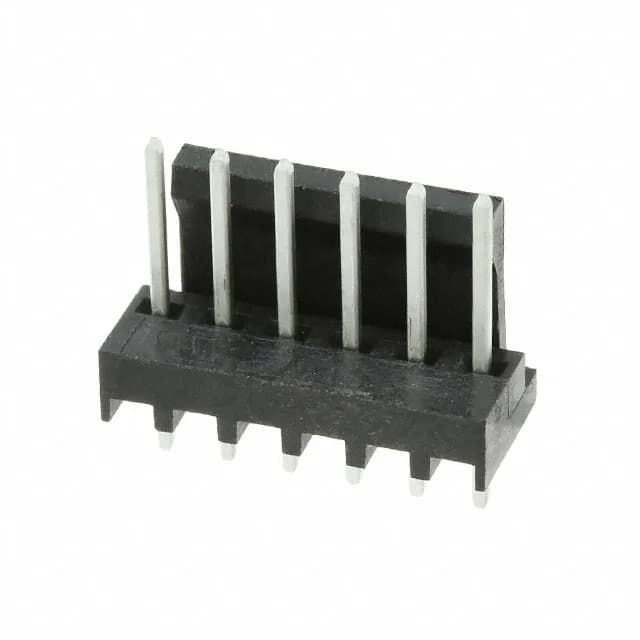

TE Connectivity AMP Connectors MTA-100 series, 3-647050-6, Board to Cable/Wire header, 6 positions, single row, 0.100" (2.54mm) pitch, through-hole solder termination, shrouded 1 wall, friction lock, tin-plated male square pins, UL94 V-0 black nylon housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.290\" (7.37mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
It mates with standard MTA-100 IDC receptacles or crimp housings for board-to-cable/wire applications. This is the same lock used across the MTA-100 line, so any standard MTA-100 receptacle housing with the matching latch window will engage.
The mating finish is 80.0 µin (2.03 µm) tin over copper alloy; the post finish is 150.0 µin (3.81 µm) tin.
Yes, it is RoHS3 compliant.
Yes, the header includes a friction lock on the shroud. The lock engages with the mating receptacle's latch window to prevent accidental disconnection under vibration or cable strain.
The current rating varies by wire gauge used in the mating receptacle. For a given wire size, consult the MTA-100 application specification for the derated current per contact at the expected ambient temperature.
