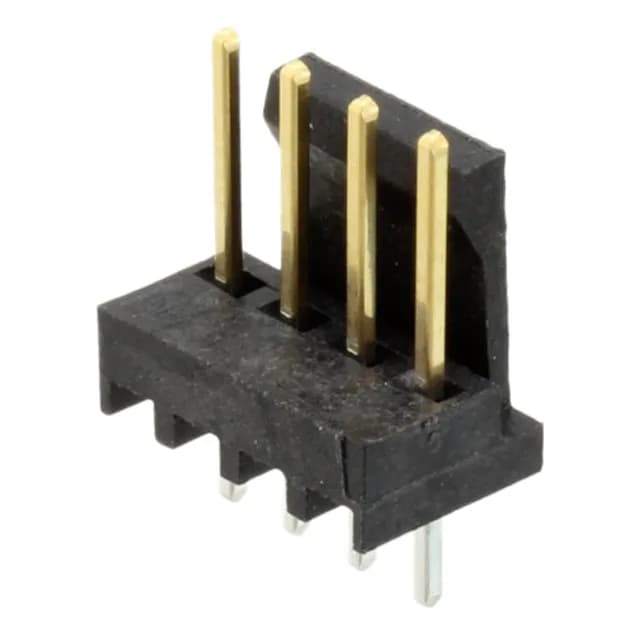

TE Connectivity AMP Connectors MTA-100 series, 3-647116-4: 4-position single-row shrouded header, 0.100" (2.54 mm) pitch, vertical through-hole, gold-over-tin contacts, friction lock, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.290\" (7.37mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
It mates with standard MTA-100 crimp-socket housings for board-to-cable wiring.
The male pins are gold-plated on the mating end (30.0 µin thickness) and tin-plated on the solder tails (150.0 µin). The gold layer supports repeated mating cycles without oxidation; the tin tails solder cleanly into plated through-holes.
Yes, the 3-647116-4 is RoHS3 compliant per the manufacturer's declaration.
