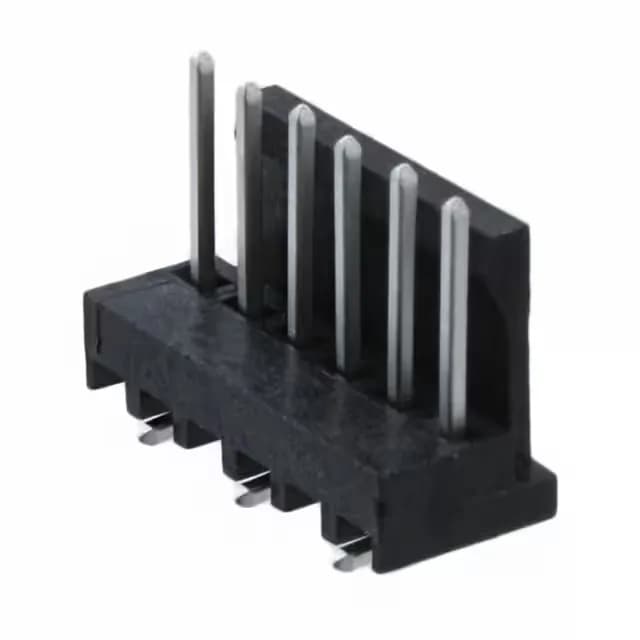

TE Connectivity AMP Connectors MTA-100 series, 3-647166-6, Board to Cable/Wire header, 6 circuits, 0.100" (2.54mm) pitch, single row, shrouded - 1 wall, surface mount, tin-plated male pins, friction lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.290\" (7.37mm) |
Tin-plated mating contacts suit cost-sensitive, non-corrosive indoor environments.
This header mates with MTA-100 IDC receptacles and crimp-style housings from the same series. The 0.290" (7.37mm) mating pin length provides adequate wipe for a reliable contact interface. Termination is surface-mount solder — the SMD tails are tin-plated for solderability.
