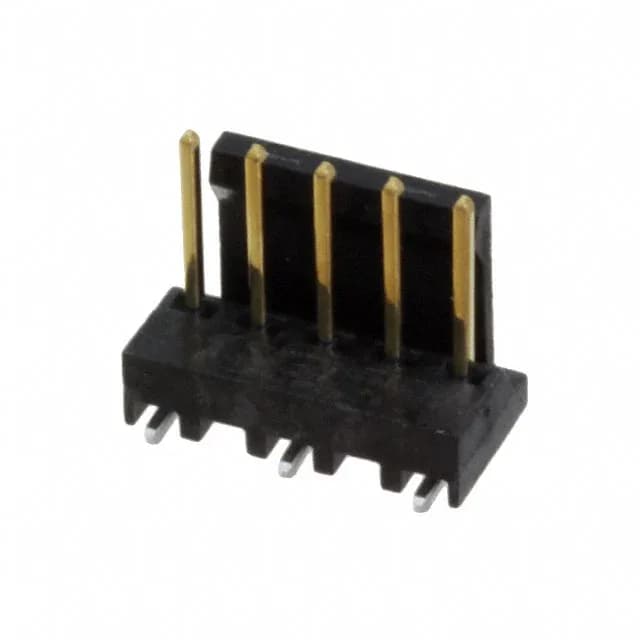

Board-to-Wire Signal Routing with Friction Lock Retention
For a field-service technician swapping a sensor head, the lock gives a tactile click that confirms the pair is seated before the panel closes.
Sizing the PCB Footprint and Mating Half
The 0.100" pitch sets the board layout: each pad centre-to-centre spacing is 2.54 mm, and the 5 positions require a total footprint width of 0.400" (10.16 mm) from the centre of pin 1 to pin 5. For a 22 AWG circuit, expect 4-5 A per contact; for 26 AWG, derate to around 2 A. The gold interface adds no measurable resistance at these levels.
Sourcing and Compliance for Production
No stock-holding claim; the BOM quantity drives the lead-time estimate.
