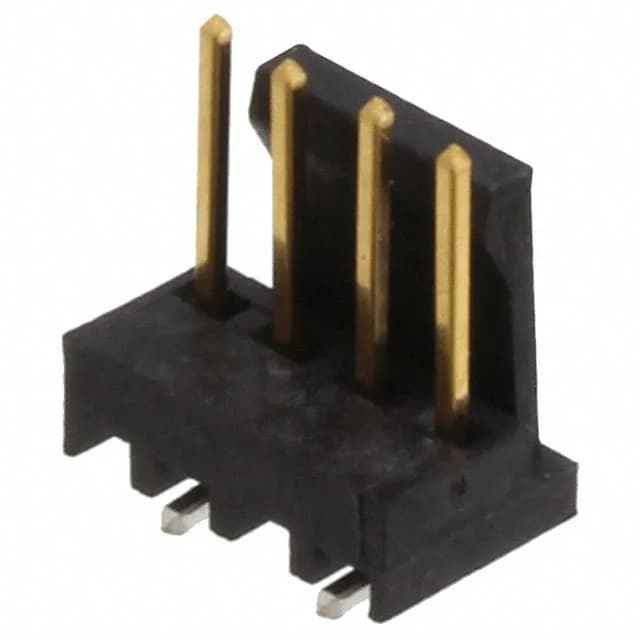

TE Connectivity AMP MTA-100 header, 3-647168-4, SMD, 4 positions, 0.100" (2.54 mm) pitch, single row, male pin, shrouded 1 wall, gold mating finish 30.0 µinch, friction lock, UL94 V-0, -55°C to 105°C, 250 VAC, current varies by wire gauge.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.290\" (7.37mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-647168-4 is a TE Connectivity AMP MTA-100 header, a 4-position single-row male pin connector in surface-mount termination. It mates with the matching MTA-100 IDC receptacle or crimp housing for board-to-cable/wire connections.
Yes, the manufacturer lists it as ROHS3 compliant.
