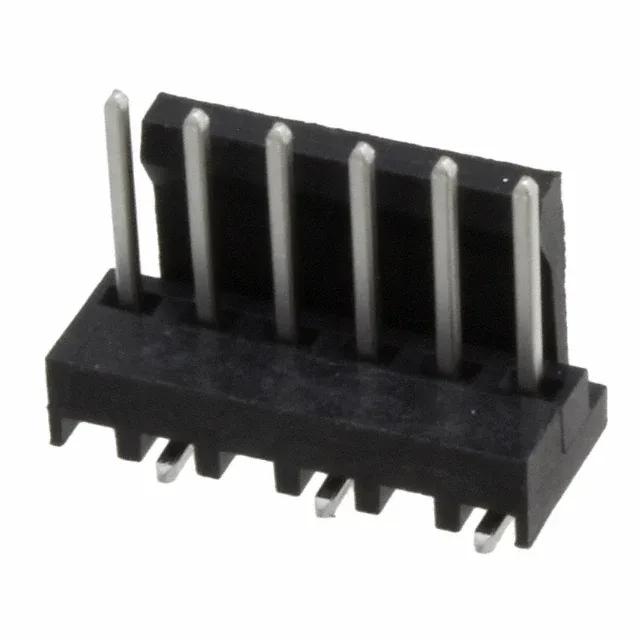

TE Connectivity AMP Connectors MTA-100 series, 3-647502-6, Board to Cable/Wire header, 6 circuits, 0.100" (2.54 mm) pitch, unshrouded, surface mount, tin-plated male pins, friction lock, UL94 V-0 black PA46 housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.290\" (7.37mm) |
Surface-mount termination allows automated pick-and-place assembly, eliminating the through-hole soldering step. The unshrouded design gives the board layout engineer direct access to the solder joints for inspection.
The voltage rating is 250 VAC, which defines the maximum working voltage for the signal path.
The mating half is a MTA-100 series receptacle housing that accepts the corresponding crimp terminals. The friction lock on the header engages with the latch on the receptacle.
