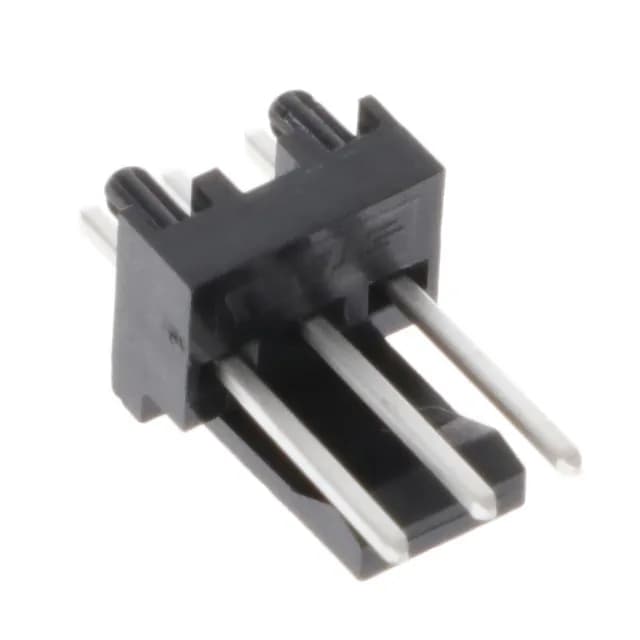

TE Connectivity AMP Connectors MTA-100, 3-647609-3, Header, Through Hole, 3 Positions, 0.100" (2.54mm) Pitch, Shrouded - 1 Wall, Friction Lock, Tin Contacts, UL94 V-0, Board to Cable/Wire
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.290\" (7.37mm) |
3-647609-3 is a 3-position, single-row, vertical through-hole header from the TE MTA-100 series.
The shrouded 1-wall design exposes the mating pins on three sides, which makes visual alignment easier during hand assembly but offers less side-impact protection than a fully shrouded header.
Sourced per RFQ — confirm the BOM quantity and we will quote against current market pricing.
Yes, it is ROHS3 compliant per the manufacturer's status.
