TE Connectivity AMP Connectors 3-647630-5 — Pin Headers

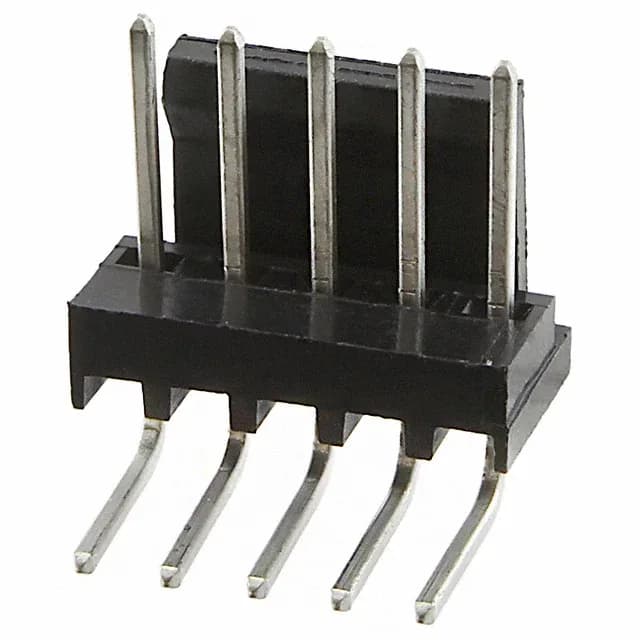

3-647630-5 TE Connectivity MTA-100 Header, 5 Pos, R/A

MPN3-647630-5
Active

TE Connectivity AMP Connectors MTA-100 series, 3-647630-5, Board to Cable/Wire header, 5 positions, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 1 wall, friction lock, tin-plated male pins, UL94 V-0, -55°C ~ 105°C.

$1.3100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-647630-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMTA-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-647630-5 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.250\" (6.35mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

3-647630-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions5
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Contact finish - matingTin
Contact length - mating0.290\" (7.37mm)
Contact finish thickness - post150.0µin (3.81µm)

Product details

The 3-647630-5 is a 5-position, single-row, through-hole right-angle pin header from the TE MTA-100 series. It mates with the MTA-100 IDC receptacle family, making it a three-part system: this header, the matching housing, and the crimp terminal that drops into that housing. The 0.100" (2.54mm) pitch is the standard spacing for the MTA-100 wire-to-board system, so the footprint on the PCB is a direct match for the mating IDC connector.

Right-Angle Orientation and Shrouding

The single-wall shrouding protects the mating interface on one side, leaving the other side open — this is a partial keying that guides the receptacle but does not fully enclose the pins.

Frequently asked questions

What is the mating connector for 3-647630-5?

This header mates with the MTA-100 IDC receptacle series (e.g., TE 3-647630-5 mates with MTA-100 housing and the appropriate crimp terminal). The 0.100" pitch and single-row layout are the key compatibility checks.

Is 3-647630-5 RoHS compliant?

Yes, it is ROHS3 compliant.
