TE Connectivity AMP Connectors 3-647630-6 — Pin Headers

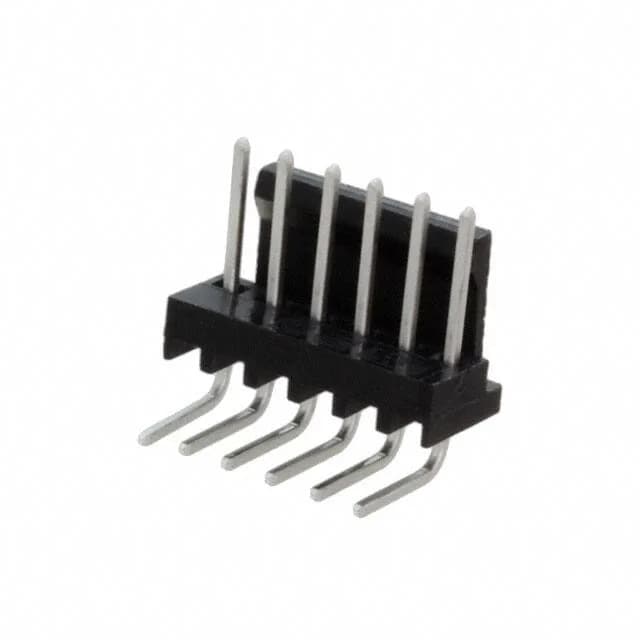

3-647630-6 TE Connectivity MTA-100 Header, 6 Pos

MPN3-647630-6
Active

TE Connectivity AMP Connectors MTA-100 series, 3-647630-6, Board to Cable/Wire header, 6 positions, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 1 wall, friction lock, tin mating finish, UL94 V-0.

$1.7900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-647630-6 datasheet (PDF)
RoHSRoHS Compliant
SeriesMTA-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-647630-6 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.250\" (6.35mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

3-647630-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Contact finish - matingTin
Contact length - mating0.290\" (7.37mm)
Contact finish thickness - post150.0µin (3.81µm)

Product details

0.100" Pitch, 6-Position, Right-Angle Header

The 3-647630-6: A friction lock secures the mating half, providing vibration resistance in harness applications where the connector pair sees movement or shock.

MTA-100 Mating and Termination

Termination is solder to the board via 0.140" (3.56 mm) posts, compatible with standard wave-solder profiles. The through-hole mounting anchors the connector against the shear force from cable strain, especially when the friction lock is engaged.

The part is RoHS compliant.

Frequently asked questions

What is the exact pitch of 3-647630-6?

The pitch is 0.100" (2.54 mm), standard for the MTA-100 series.
