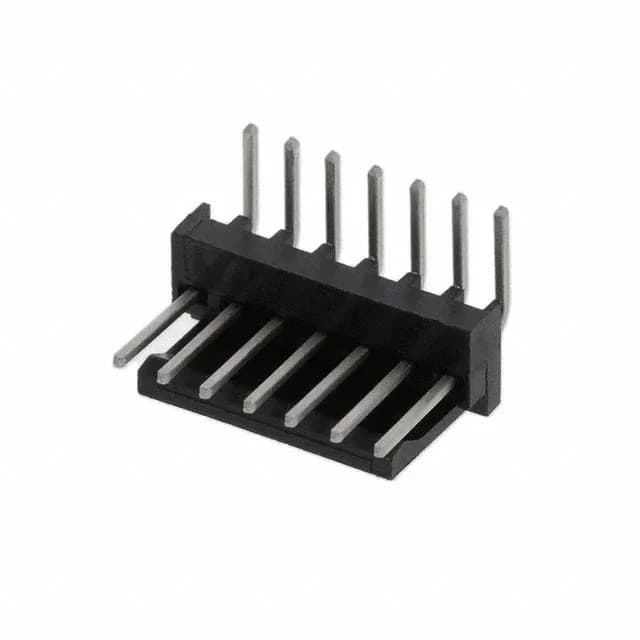

TE Connectivity AMP Connectors MTA-100 header, 7 positions, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 1-wall, friction lock, tin-plated male pins, black PBT housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.290\" (7.37mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
Mates with MTA-100 receptacle housings (part numbers in the 640250-xx or 640251-xx range) using standard 0.100" pitch crimp terminals or IDC contacts. Through-hole solder termination — the 0.140" (3.56mm) post length fits standard 1.6mm PCBs. The 1-wall shroud guides the mating connector and protects the pins during handling.
