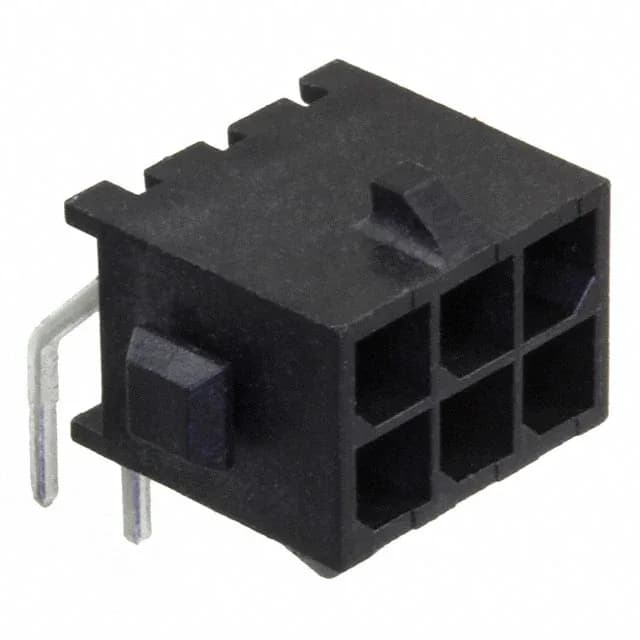

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794619-6, 6 circuits, 3.00mm pitch, right-angle through-hole, shrouded 4-wall, gold mating finish, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The locks also absorb shear forces from the mated cable assembly, reducing stress on the solder joints. Through-hole solder termination with tin-plated posts (100.0µin thickness) ensures a reliable metallurgical bond to the board. The square male pins accept standard Micro MATE-N-LOK crimp receptacle terminals.
This header mates with Micro MATE-N-LOK receptacle housings that accept crimp socket terminals. The 6-circuit, 3.00mm pitch receptacle is the matching half — confirm the circuit count and keying before ordering.
The pitch is 3.00mm (0.118") on both the mating interface and row spacing. It has 6 positions in a 2-row configuration, all positions loaded.
