TE Connectivity AMP Connectors 3-794619-8 — Pin Headers

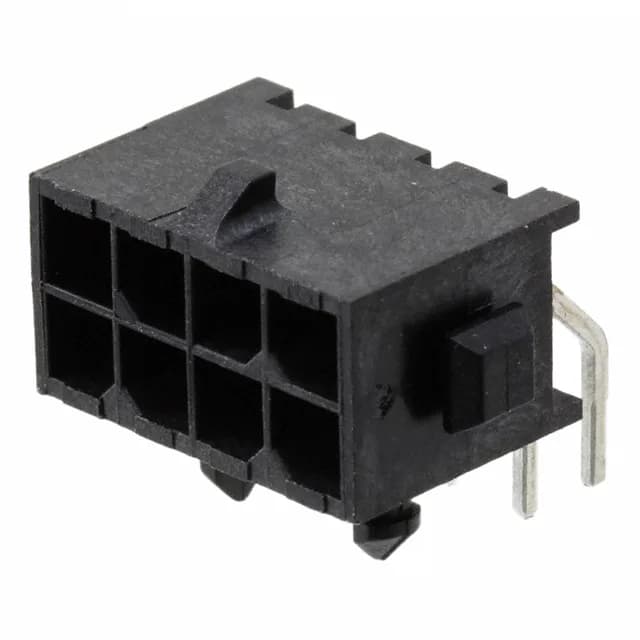

3-794619-8 TE Connectivity Micro MATE-N-LOK Header 8 Pos

MPN3-794619-8
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794619-8, 8 positions, 3.00 mm pitch, through-hole right-angle, male pin, gold-plated mating contacts, shrouded 4-wall, locking ramp, board lock, UL94 V-0, -40°C to 105°C.

$1.7000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-794619-8 datasheet (PDF)
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-794619-8 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

3-794619-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions8
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

3.00 mm pitch, 8-position right-angle header with locking ramp

The 3-794619-8: This is an 8-position, 2-row header from the Micro MATE-N-LOK series, designed for board-to-cable/wire applications. The 3.00 mm pitch sets the board footprint and the per-contact current ceiling — at the rated current the temperature rise stays within the UL94 V-0 polyamide housing limit.

The 8-position, 2-row layout matches receptacle part numbers in the same series; confirm the receptacle's circuit count and row spacing (0.118 in / 3.00 mm) before ordering.

Frequently asked questions

What mates with 3-794619-8?

It mates with Micro MATE-N-LOK receptacle housings that accept crimp terminals, in an 8-position, 2-row, 3.00 mm pitch layout. The locking ramp on the header engages the receptacle latch for vibration-resistant mating.
