TE Connectivity AMP Connectors 3-794620-2 — Pin Headers

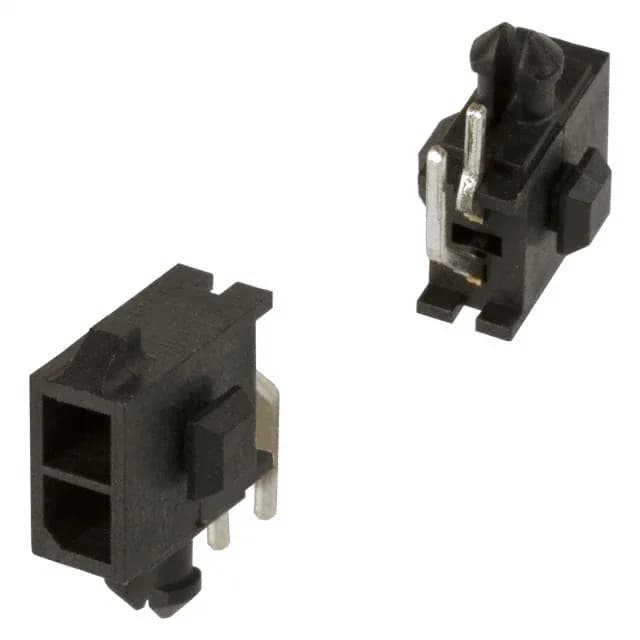

3-794620-2 TE Connectivity Micro MATE-N-LOK Header, 2-Pin

MPN3-794620-2
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2-position, 2-row, right-angle through-hole, shrouded 4-wall, gold mating finish, locking ramp, UL94 V-0.

$1.7800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-794620-2 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

3-794620-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Positions2
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle 2-pin header for board-to-wire harnesses

The 3-794620-2: This is a 2-position, 2-row header from the Micro MATE-N-LOK series by TE Connectivity AMP Connectors.

Pitch, current, and temperature envelope

The row-to-row spacing is 0.118" (3.00mm), matching the Micro MATE-N-LOK receptacle pitch. The voltage ceiling is 250V.

The closest peer in the same series is the 1-1871673-2, a 4-position, 2-row right-angle header with a 2.50mm mating pitch and tin mating finish. The 3-794620-2 carries gold on the mating interface (30.0µin vs 31.5µin tin) and a 3.00mm row spacing — a different footprint and a higher cycle-life contact surface.

Frequently asked questions

Where can I buy 3-794620-2?

We source this TE Connectivity Micro MATE-N-LOK header through independent distribution. Submit an RFQ with your target quantity and we will confirm availability and current pricing at quote time.

What is the current rating of 3-794620-2?

The current rating is listed as varies by wire gauge.
