TE Connectivity AMP Connectors 3-794620-4 — Pin Headers

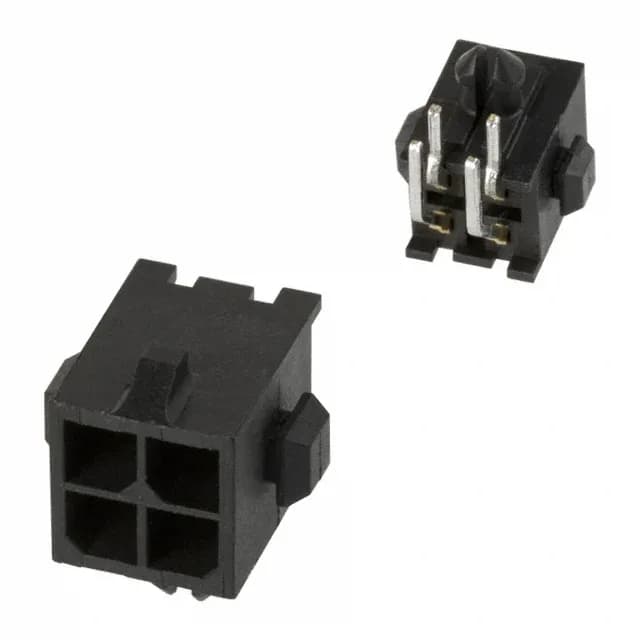

3-794620-4 TE Connectivity Micro MATE-N-LOK Header 4 Pos

MPN3-794620-4
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794620-4, 4 positions, 2 rows, 3.00 mm pitch, right-angle through-hole, shrouded, gold mating contacts, board lock, active production.

$2.5800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-794620-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

3-794620-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions4
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle header for tight board-edge routing

The 3-794620-4: This is a 4-position, 2-row right-angle header from the Micro MATE-N-LOK series, designed for board-to-cable/wire connections. The 3.00 mm pitch sets the board footprint and the per-contact current ceiling — at the rated current, temperature rise stays within the UL94 V-0 polyamide housing limit.

The solder termination on the header pins is through-hole, right-angle — the pins are square brass with tin-plated tails (100 µinch) for good solder wetting.

Frequently asked questions

What is the mating connector for 3-794620-4?

It mates with Micro MATE-N-LOK receptacle housings that accept crimp terminals. The receptacle part numbers vary by circuit count and wire gauge — confirm the mating half against your harness design.

Does 3-794620-4 have a locking feature?

Yes, it has a locking ramp on the header that snaps into the matching receptacle for a secure, vibration-resistant mate. It also includes a board lock for PCB retention.
