TE Connectivity AMP Connectors 3-794624-8 — Pin Headers

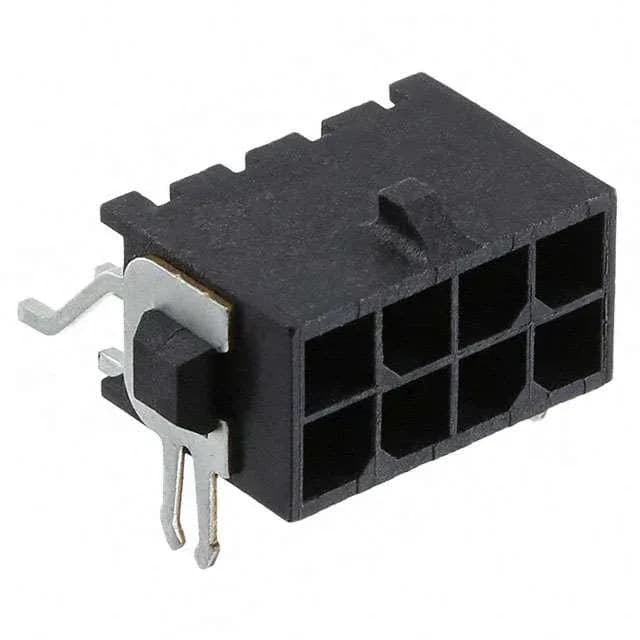

3-794624-8 TE Micro MATE-N-LOK Header SMD R/A 8POS 3mm

MPN3-794624-8
Active

TE Connectivity AMP Micro MATE-N-LOK header, 3-794624-8, 8 positions, 2 rows, 3.00mm pitch, surface-mount right-angle, shrouded 4-wall, locking ramp, board locks, tin-plated contacts, UL94 V-0.

$3.1400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-794624-8 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

3-794624-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions8
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Right-angle SMT header with locking ramp

The 3-794624-8: This is an 8-position, 2-row header from TE's Micro MATE-N-LOK series, pitched at 3.00mm and terminated in surface-mount right-angle solder tails. Board locks on the SMT feet anchor the part during reflow and take shear loads off the solder joints once the cable is mated — a practical detail for production and field life.

Tin-plated contacts, 100 µin, rated for general-purpose duty

Tin is the workhorse finish for moderate mating-cycle applications — it's cost-effective and reliable in dry-circuit or low-current signal paths, though it doesn't match gold's cycle life in frequent disconnect environments.

Frequently asked questions

How can I order 3-794624-8 or check stock?

Submit an RFQ with your target quantity. We source this active-production part against your order; current pricing and lead time are confirmed at quote time.

What is the mating connector for 3-794624-8?

It mates with a Micro MATE-N-LOK receptacle housing (e.g., 794617 series) using the matching crimp terminals. The locking ramp on this header engages the receptacle's latch for a vibration-resistant connection.
