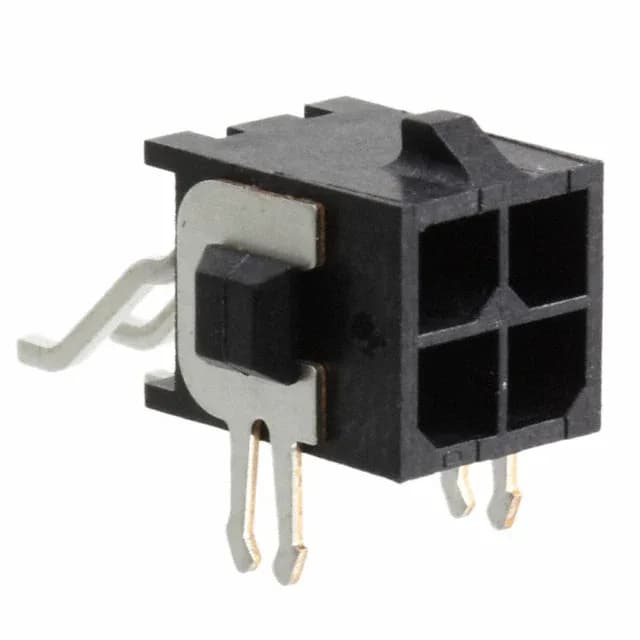

3-794625-4 TE Connectivity Micro MATE-N-LOK Header, 4 Pos

MPN3-794625-4
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794625-4, 4-position dual-row, 3.00 mm pitch, surface-mount right-angle, gold-plated male pins, shrouded with board lock.

$2.1937Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-794625-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

3-794625-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions4
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-edge cable interconnect with SMT retention

The 3-794625-4 is a 4-position, dual-row header from the Micro MATE-N-LOK series, designed for board-to-cable/wire applications. Its 3.00 mm pitch sets the PCB footprint and the per-contact current ceiling — the actual current rating depends on the wire gauge used in the mating half. Right-angle SMT orientation places the mating interface parallel to the board, suiting edge-mounted cable exits in space-constrained enclosures. The tin-plated solder tails (100.0 µinch) are standard for SMT reflow compatibility.

Frequently asked questions

What is the mating connector for 3-794625-4?

The 3-794625-4 mates with a Micro MATE-N-LOK receptacle housing that accepts crimp terminals. Confirm the circuit count and keying match your harness assembly.
