TE Connectivity AMP Connectors 3-794627-2 — Pin Headers

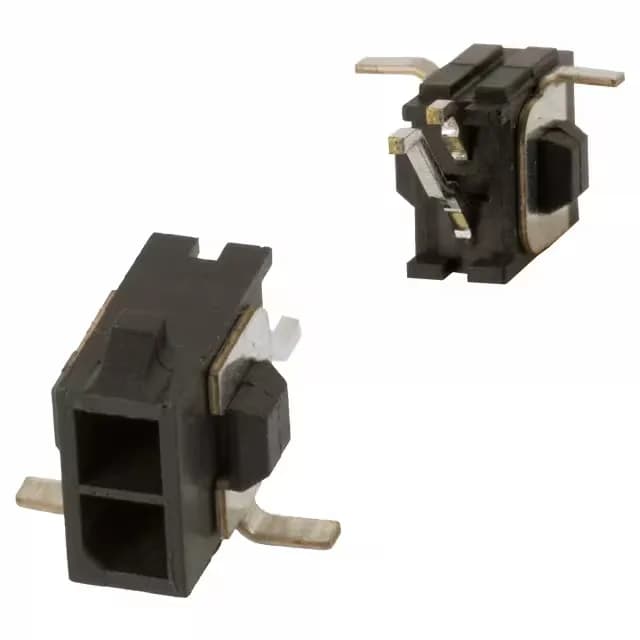

3-794627-2 TE Connectivity Micro MATE-N-LOK Header

MPN3-794627-2
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 2 positions, surface-mount right-angle, tin-plated male pins, shrouded 4-wall, locking ramp, UL94 V-0, active production.

$1.5794Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-794627-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-794627-2 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

3-794627-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Positions2
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-Edge Fit and Sourcing

The 3-794627-2: The locking ramp holds the mating receptacle in place under vibration; in a panel that sees machine cycling or transport shock, that latch keeps the pair mated without a secondary screw.

What the 2-Position Layout Means for the Build

For higher cycle counts or corrosive atmospheres, the gold-plated variants in the Micro MATE-N-LOK series are the better call.

Current, Voltage, and Temperature Ceiling

Voltage rating is 250 V.

Compliance and Approvals

ROHS3 compliant.

Frequently asked questions

Where can I buy 3-794627-2?

This part is available through independent distribution channels.

What is the pitch of 3-794627-2?

The row spacing is 0.118" (3.00 mm). The position pitch within each row is the standard Micro MATE-N-LOK 3.00 mm grid.

Is 3-794627-2 RoHS compliant?

Yes, it is ROHS3 compliant.
