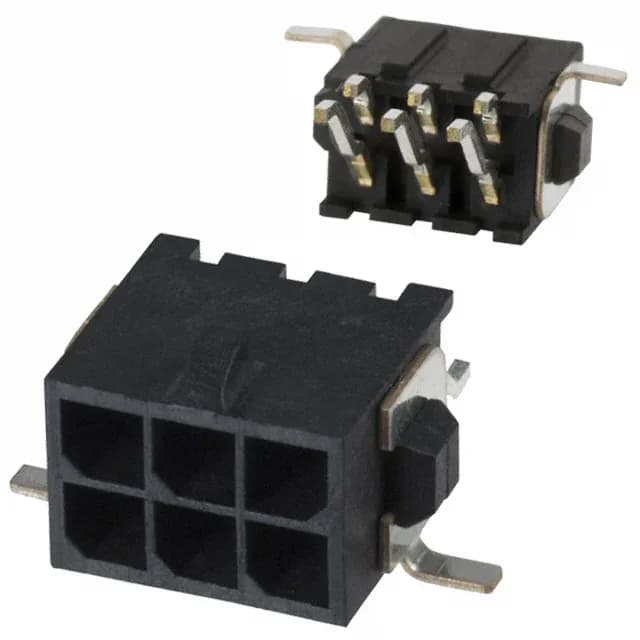

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794628-6, 6 position, 2-row, 3.00mm pitch, SMD right-angle, shrouded-4 wall, gold mating finish, active production.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 3-794628-6: The 3.00mm pitch and 3.00mm row spacing set the board footprint for this 6-position, 2-row header. The locking ramp on the shroud provides audible tactile feedback when the connector pair seats fully.
The mating pitch is 3.00mm, and the row spacing is also 3.00mm. This sets the board footprint for the 6-position, 2-row header.
Yes, it is ROHS3 compliant.
It is a surface-mount, right-angle header. The SMD termination and right-angle orientation suit board-edge routing in space-constrained designs.
The insulation height is 0.290 inches (7.37 mm). This dimension, combined with the right-angle orientation, determines the z-height clearance needed above the board.
