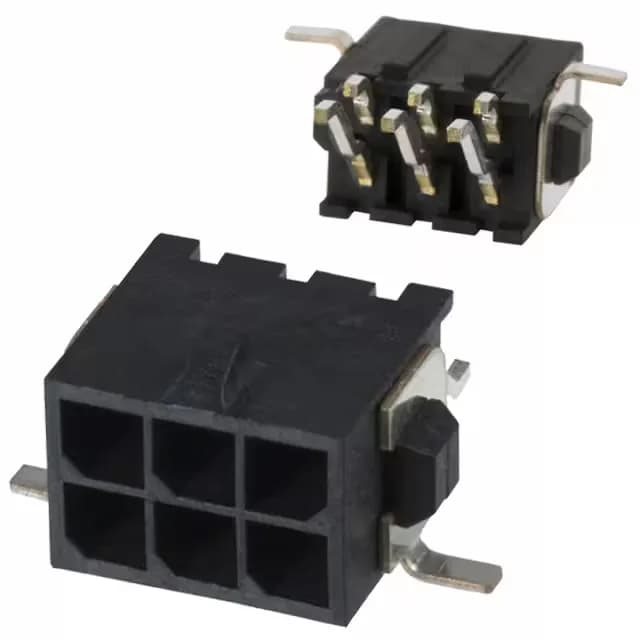

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794629-6, 6 circuits, 3.00mm pitch, surface-mount right-angle, shrouded, locking ramp, gold mating contacts.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-794629-6: The right-angle SMT orientation places the connector at the board edge, with the mated cable exiting parallel to the PCB — a common layout in space-constrained enclosures where z-height is tight.
The tin-plated solder tails (100.0 µinch) are standard for SMT reflow compatibility.
The mating pitch is 0.118" (3.00 mm) for both the pin-to-pin spacing and the row-to-row spacing.
Yes, it is ROHS3 compliant per the manufacturer's listing.
