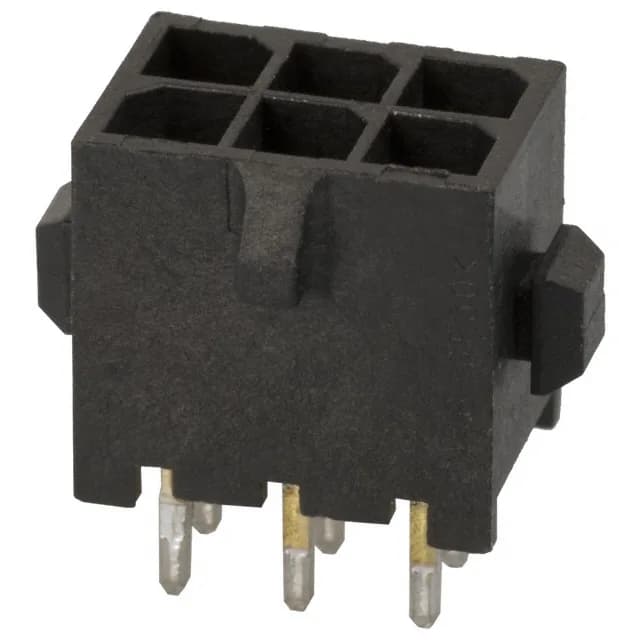

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794630-6, 6-position, 2-row, 3.00mm pitch, shrouded, locking ramp, through-hole press-fit/solder termination, tin-plated contacts, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Its 3.00mm pitch and 0.118" row spacing match the Micro MATE-N-LOK receptacle family, making it a direct mate for a crimp-terminated harness. The locking ramp on the shroud provides a positive latch with the mating housing, giving you an audible click that confirms full engagement — useful in moderate vibration environments where a plain friction lock might back out.
The mating half is a Micro MATE-N-LOK receptacle housing (e.g., 794617 series) with crimp terminals. The 3.00mm pitch and locking ramp are specific to this series — a standard 0.100" header will not latch.
Yes, it is ROHS3 compliant.
Yes, it is shrouded with 4 walls, which protects the pins during handling and guides the mating receptacle into alignment.
The current rating varies by wire gauge — it depends on the crimp terminal and wire size used in the mating half. The header itself is rated for the full series capability; the limiting factor is the wire and terminal combination.
