TE Connectivity AMP Connectors 3-794631-4 — Pin Headers

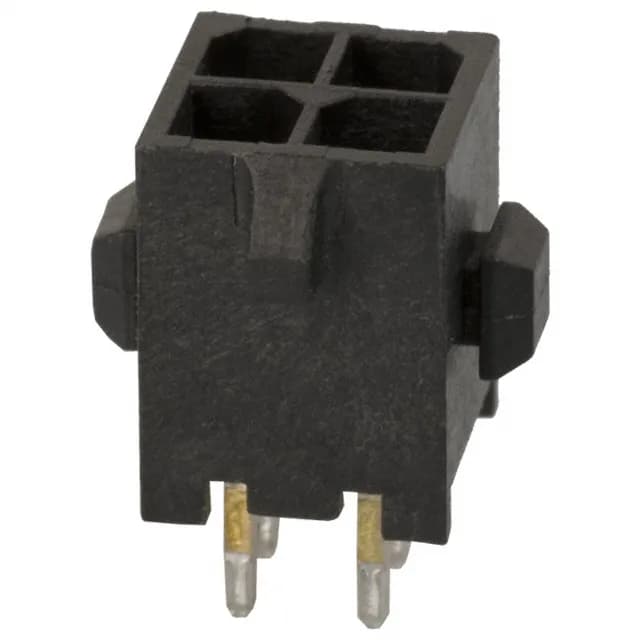

3-794631-4 TE Connectivity Micro MATE-N-LOK Header 4-Pos 3mm

MPN3-794631-4
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-794631-4, 4 positions, 2 rows, 3.00mm pitch, shrouded 4-wall, locking ramp, gold mating finish, press-fit and solder termination, UL94 V-0, active.

$1.4900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-794631-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

3-794631-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions4
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-harness header for 3.00mm pitch Micro MATE-N-LOK

The 3-794631-4 is a 4-position, 2-row vertical header from TE's Micro MATE-N-LOK series, on a 3.00mm pitch. It mates with the corresponding Micro MATE-N-LOK receptacle housing to form a board-to-cable/wire connection.

Termination and mating: press-fit or solder, gold on pins

Termination is through-hole with both press-fit and solder options — the press-fit route eliminates soldering for rework-friendly assembly. The header mates with Micro MATE-N-LOK receptacle housings using the locking ramp for positive retention.

Peer comparison: 1-1871673-2 vs 3-794631-4

The closest functional alternative is TE's 1-1871673-2, also a 4-position, 2-row shrouded header, but on a 2.50mm pitch with tin mating finish and a right-angle orientation. The 3-794631-4 uses 3.00mm pitch, gold mating, and vertical orientation — a different footprint and mating half.

Frequently asked questions

Is 3-794631-4 compatible with Micro MATE-N-LOK receptacle?

Yes, the 3-794631-4 header is designed to mate with Micro MATE-N-LOK receptacle housings. The 3.00mm pitch, 2-row layout, and locking ramp align with the series' receptacle contacts and housing keying.

What is the pinout of 3-794631-4?

The 3-794631-4 has 4 positions in 2 rows, all positions loaded. The pinout follows the standard Micro MATE-N-LOK 2x2 grid — confirm orientation with the mating receptacle's keying.

Is 3-794631-4 RoHS compliant?

Yes, the 3-794631-4 is ROHS3 compliant per the manufacturer's status.

How do I get current pricing and availability for 3-794631-4?

Submit an RFQ for the 3-794631-4 with your target quantity.
