TE Connectivity AMP Connectors Micro MATE-N-LOK, Header, 6 Positions, 3.00mm Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Locking Ramp, Board Lock, Tin Mating Contact, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |

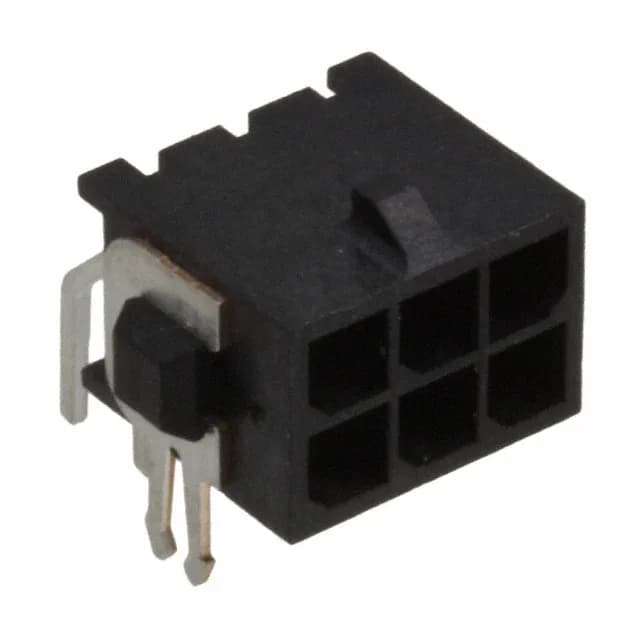

The 3-794677-6 is a 6-position, 2-row header from the Micro MATE-N-LOK series, on 3.00 mm pitch with a right-angle orientation.
The locking ramp on the shroud engages with the mating receptacle's latch, preventing accidental unmating under vibration — a key requirement for automotive and industrial applications.
Yes, the fastening type is a locking ramp. It provides positive retention with the mating Micro MATE-N-LOK receptacle.
The mating pitch is 3.00 mm (0.118") between positions, and the row spacing is also 3.00 mm.
Yes, it is listed as ROHS3 Compliant.
