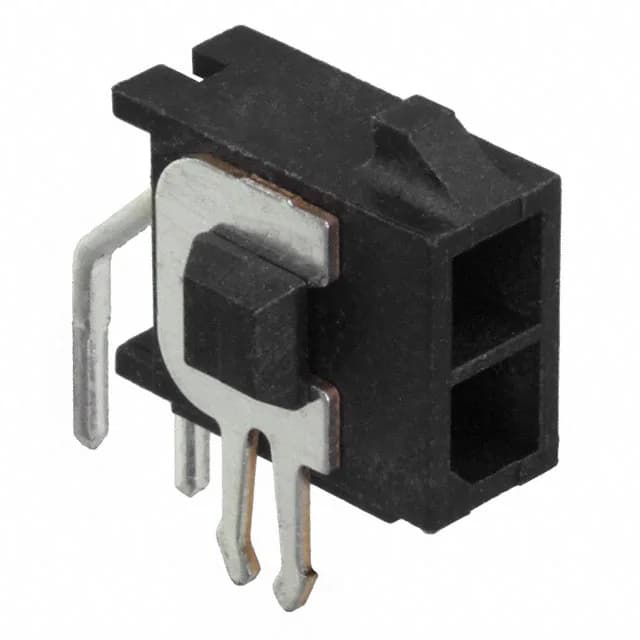

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 3-794678-2, 2 positions, dual row, through-hole right-angle, gold-plated mating contacts, 250 V, shrouded - 4 wall, locking ramp, board lock.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Positions | 2 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 3-794678-2 is the 2-circuit member of TE's Micro MATE-N-LOK header line, a board-to-cable/wire connector with a shrouded 4-wall housing and locking ramp. It carries gold-plated mating contacts rated 250 V and mounts through-hole right-angle with solder termination; the board lock aids SMT retention during reflow.
